Looking for Business Partners for wireless ip camera

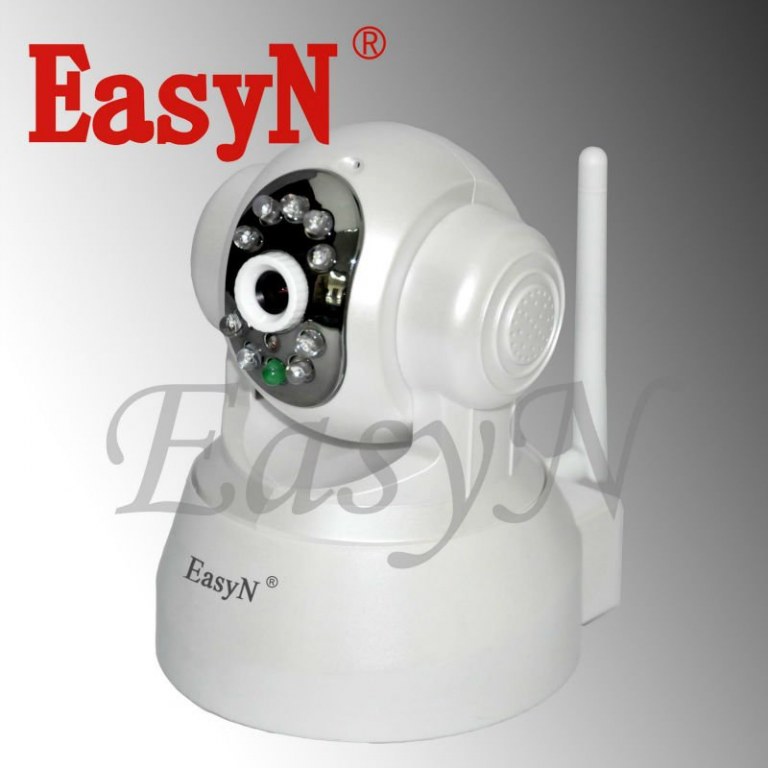

Model ：F-M166

Features

Superiority

Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphone

mobile software

Provide special software in the iPhone or android mobile phone

DDNS（free）

Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code

CMS software

EasyN multi-window mangement software

System security

Supports three-level account, password, user multi-level authority management

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ-45 10/100Mb self-adaptable Ethernet slot

Protocol

Support TCP/IP、HTTP、ICMP、DHCP、FTP、SMTP、PPPoE etc.

Wireless

WIFI,802.11 b/g

IP mode

Dynamic IP address, static IP address, PPPOE

Online visitor

Streaming in (640 * 480)directly connected , Support 4 visitors at the same time

Streaming in(320*240)directly connected , Support 4 visitors at the same time

Streaming in (160* 120)directly connected , Support 4 visitors at the same time

Video

Compression format

Motion-JPEG

Signal system

CMOS 300,000 pixel

Frame rate

1-25fps

Resolution

VGA(640*480),QVGA(320*240) ,QQVGA(160*120)

Image adjustment

Brightness, contrast.

WB, BLC

Auto

LUX

0.3LUX/F1.2

SNR

>48dB

Lens

Standard: 3.6mm

Audio

Compression format

G.711/G.726

Input

1 channel linear/microphone input

Output

1 channel linear output

PTZ

Motor

Built-in motor control

Rotation angle

Horizontal: 270° vertical: 90°

Preset

Support 15 preset position

PTZ Protocol

No

Nightvision

Filter switch

Can auto-switch automatically, without color cast

Nightvision

9Φ5LED lights IR distance: 10m

Others

Shape material

Cartoon robot

environment

indoor use

Power supply

5V 2A

Operating temperature

-10~50°C

Operating humidity

10%~90%RH

Dimension

Item size：110mm x 100mm x 125mm (L*W*H)

Package size：170mm x 170mm x 170mm (L*W*H)

Weight

Item weight：265g （Note: for real products ）

Package weight：625g

Accessories

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna

System

System requirement

Microsoft Win98 SE/ME/2000/XP,Vista，Win7,Internet Explorer8.0

Certification

Certificate

CE FCC ROHS ISO
