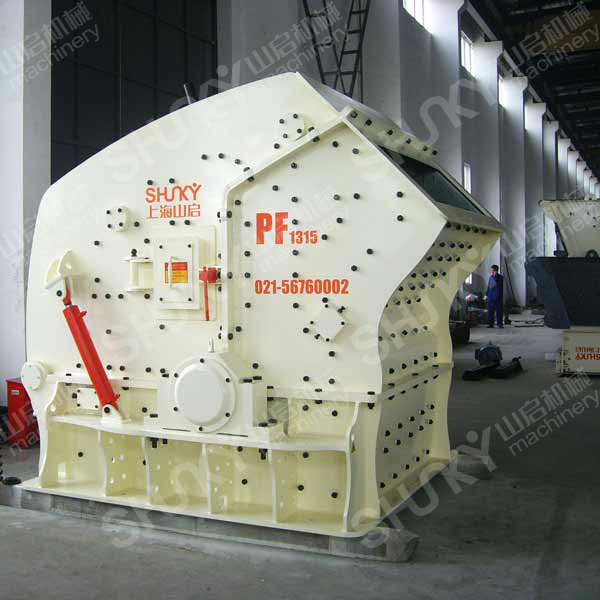

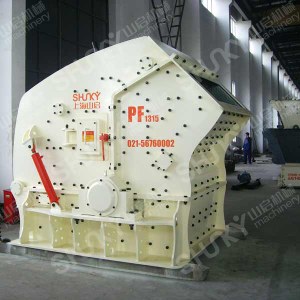

Low energy consumption PF series horizontal impact crusher

Product Description
The design of stone impact crushers adopt novel design principle, new concepts of crushing technology; meets demands of crushing different materials in different degrees; satisfies the need of “more crushing, less wearing”. Stone impact crushers not only has a great crushing ratio and fine products of uniform shape, it also consumes less power per unit. It's unique design lowers its cost of repair and maintenance, thus improves its productivity and reduces its cost. Stone impact crushers prove the bright prospect of its application in mining processing industry through large scale projects.
Features
1. It has a big feed opening and a high crushing chamber. Materials of high hardness and big size can be crushed by it, and the product is of less powder.
2. The space between the impact plate and the blow bar can be adjusted conveniently. The particle size is controled effectively. The product is of good shape.
3. It has a compact structure and can resist strong forces. Its totor has a great rotational inertia.
4. Chrome hammer is used and can bear impacts, abrading and can impact with a great force.
5. The no- board connection makes it easy to repaire and maintain.
6. It has more crushing functions and is of bigger productivity, less wearing, higher comprehensive benefits.
Technical Data

Model

Size of Rotor

(mm)

Feeding Opening

(mm)

Max. Feeding

Size(mm)

Capacity

(t/h)

Power of Motor

(KW)

PF-1007

1000×700

400×730

260

25-60

55

PF-1010

1000×1050

400×1080

260

50-90

55-75

PF-1210

1020×1050

400×1080

300

70-130

110-132

PF-1214

1050×1400

400×1430

300

90-180

132-160

PF-1315

1320×1500

860×1520

350

120-250

180-220

PF-1320

1320×2000

860×2030

500

160-350

280-300

PF-1520

1500×2000

1315×2040

700

300-500

400-450
