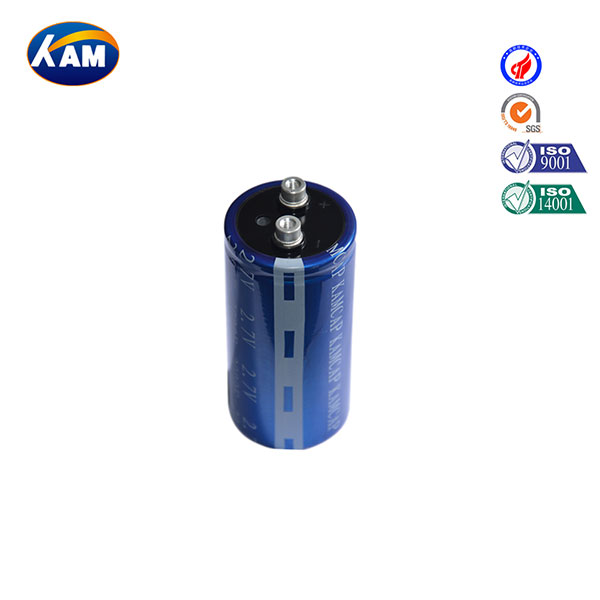

Low ESR Winding Type Series
Quantité : 100000/day
Performance Characteristics of Low ESR Cap
Low internal resistance series supercaps. This product uses a new internal design and advanced materials to ensure low cap ESR.
Typical Application of Low ESR Winding Ultracap
RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
If you need to buy super capacitor, please contact our sales team via info@kamcap.com. Enquires are welcome at any time.
Low ESR Winding Supercapacitor Series Specification Sheet
|
Series name |
LR Series supercaps |
|
Type name |
LR-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
1F~100F |
|
Operating temperature range |
-40 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃,1 million cycles between VR and 1/2VR , Capacity attenuation≤30% ,ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR ,1500 hours.Capacity attenuation≤30% ,ESR change≤4 times. |
Key Features of Low ESR Winding Supercapacitor
LR 2.7V Series products
|
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
LR-2R7-J254UYJ03 |
0.25 |
300 |
150 |
5 |
12 |
2 |
|
LR-2R7-J105VYJ06 |
1 |
170 |
85 |
8 |
13 |
3.5 |
|
LR-2R7-J205VYJ07 |
2 |
105 |
70 |
8 |
20 |
3.5 |
|
LR-2R7-J205VYJ08 |
2 |
105 |
70 |
8 |
16 |
3.5 |
|
LR-2R7-J205VYJ66 |
2 |
105 |
70 |
10 |
13 |
5 |
|
LR-2R7-J205VYJ13 |
2 |
105 |
70 |
10 |
20 |
5 |
|
LR-2R7-J335VYJ07 |
3.3 |
85 |
60 |
8 |
20 |
3.5 |
|
LR-2R7-J505UYJ04 |
5 |
60 |
40 |
8 |
24 |
3.5 |
|
LR-2R7-J505VYJ13 |
5 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705UYJ13 |
7 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705VYJ11 |
7 |
46.5 |
30 |
10 |
25 |
5 |
|
LR-2R7-805VYJ11 |
8 |
53 |
35 |
10 |
25 |
5 |
|
LR-2R7-J106VYJ12 |
10 |
55 |
25 |
10 |
30 |
5 |
|
LR-2R7-J106VYJ09 |
10 |
55 |
25 |
12.5 |
21 |
5 |
|
LR-2R7-J256UYJ21 |
25 |
25 |
17 |
16 |
26 |
8 |
|
LR-2R7-J107UYJ28 |
100 |
10 |
5.0 |
22 |
46 |
10 |
|
LR-2R7-J107UYJ29 |
100 |
10 |
5.0 |
25.4 |
40 |
10 |
|
LR-2R7-J127VYJ30 |
120 |
9.6 |
4.8 |
25.4 |
54 |
10 |
|
LR-2R7-J157VYJ30 |
150 |
9.2 |
4.6 |
25.4 |
54 |
10 |
|
LR-2R7-J227VYJ31 |
220 |
8.0 |
4.0 |
30 |
50 |
10 |
|
LR-2R7-J307VYJ32 |
300 |
7.0 |
3.5 |
35 |
54 |
10 |
|
LR-2R7-J367UYJ32 |
360 |
6.0 |
3.0 |
35 |
54 |
10 |
|
LR-2R7-J367VYJ33 |
360 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J407UYJ33 |
400 |
5.6 |
2.8 |
35 |
61 |
10 |
|
LR-2R7-J477VYJ33 |
470 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J507VYJ33 |
500 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J557VYJ75 |
550 |
5.6 |
2.8 |
35 |
70 |
10 |
|
LR-2R7-J607VYJ75 |
600 |
5.6 |
2.8 |
35 |
70 |
10 |
As a capacitor maker, we will do our best to provide more kinds of related products for sale, if you have needs, please contact us.
KAMCAP is one of the leading supercapacitor manufacturers in China. We supply high-quality ultracapacitors, including coin type supercapacitor, winding type supercapacitor, combined type supercap capacitor, module supercaps, high temperature supercap and hybrid capacitor. Kamcap is devoted to the research and development of ultracap and strictly control the ultracapacitor production.
