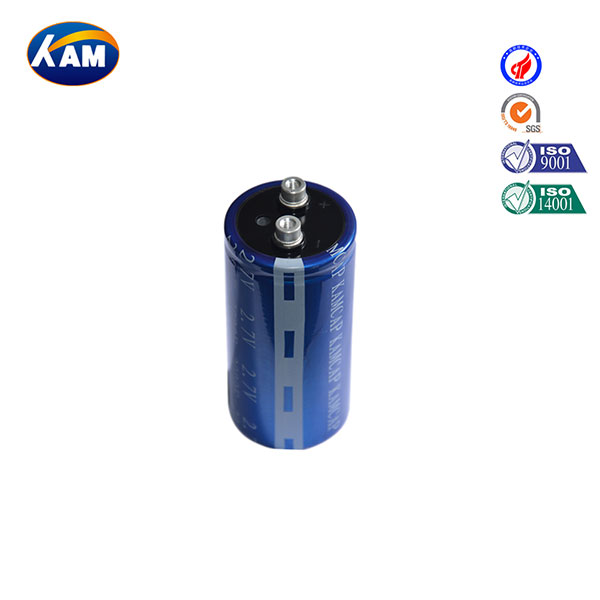

Low ESR Winding Type Series
Quantité : 100000/day
Performance Characteristics of Low ESR Supercapacitor
Low internal resistance supercapacitor series. This product uses a new internal design and advanced materials to ensure low ESR.
Typical Application of Low ESR Winding Ultracap
RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
If you need to buy super capacitor, please contact our sales team via info@kamcap.com. Enquires are welcome at any time.
Low Supercapacitor ESR Series Specification Sheet
|
Series name |
LR Series supercaps |
|
Type name |
LR-2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
1F~100F |
|
Operating temperature range |
-40 ~ +70℃ |
|
Product life |
Normal temperature cycle life：25℃,1 million cycles between VR and 1/2VR , Capacity attenuation≤30% ,ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR ,1500 hours.Capacity attenuation≤30% ,ESR change≤4 times. |
Key Features of Low ESR Winding Supercapacitor
LR 2.7V Series products
|
Model |
Capacity F |
ESR mΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
LR-2R7-J254UYJ03 |
0.25 |
300 |
150 |
5 |
12 |
2 |
|
LR-2R7-J105VYJ06 |
1 |
170 |
85 |
8 |
13 |
3.5 |
|
LR-2R7-J205VYJ07 |
2 |
105 |
70 |
8 |
20 |
3.5 |
|
LR-2R7-J205VYJ08 |
2 |
105 |
70 |
8 |
16 |
3.5 |
|
LR-2R7-J205VYJ66 |
2 |
105 |
70 |
10 |
13 |
5 |
|
LR-2R7-J205VYJ13 |
2 |
105 |
70 |
10 |
20 |
5 |
|
LR-2R7-J335VYJ07 |
3.3 |
85 |
60 |
8 |
20 |
3.5 |
|
LR-2R7-J505UYJ04 |
5 |
60 |
40 |
8 |
24 |
3.5 |
|
LR-2R7-J505VYJ13 |
5 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705UYJ13 |
7 |
85 |
55 |
10 |
20 |
5 |
|
LR-2R7-J705VYJ11 |
7 |
46.5 |
30 |
10 |
25 |
5 |
|
LR-2R7-805VYJ11 |
8 |
53 |
35 |
10 |
25 |
5 |
|
LR-2R7-J106VYJ12 |
10 |
55 |
25 |
10 |
30 |
5 |
|
LR-2R7-J106VYJ09 |
10 |
55 |
25 |
12.5 |
21 |
5 |
|
LR-2R7-J256UYJ21 |
25 |
25 |
17 |
16 |
26 |
8 |
|
LR-2R7-J107UYJ28 |
100 |
10 |
5.0 |
22 |
46 |
10 |
|
LR-2R7-J107UYJ29 |
100 |
10 |
5.0 |
25.4 |
40 |
10 |
|
LR-2R7-J127VYJ30 |
120 |
9.6 |
4.8 |
25.4 |
54 |
10 |
|
LR-2R7-J157VYJ30 |
150 |
9.2 |
4.6 |
25.4 |
54 |
10 |
|
LR-2R7-J227VYJ31 |
220 |
8.0 |
4.0 |
30 |
50 |
10 |
|
LR-2R7-J307VYJ32 |
300 |
7.0 |
3.5 |
35 |
54 |
10 |
|
LR-2R7-J367UYJ32 |
360 |
6.0 |
3.0 |
35 |
54 |
10 |
|
LR-2R7-J367VYJ33 |
360 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J407UYJ33 |
400 |
5.6 |
2.8 |
35 |
61 |
10 |
|
LR-2R7-J477VYJ33 |
470 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J507VYJ33 |
500 |
6.0 |
3.0 |
35 |
61 |
10 |
|
LR-2R7-J557VYJ75 |
550 |
5.6 |
2.8 |
35 |
70 |
10 |
|
LR-2R7-J607VYJ75 |
600 |
5.6 |
2.8 |
35 |
70 |
10 |
As one of low esr capacitor manufacturers, we can offer sorts of related products for sale, anything you need, please contact us.
Jinzhou Kaimei Power Co., Ltd. was established in 2006, located in Jinzhou City, Liaoning Province, China. Kamcap super capacitor is one of the leading supercapacitor manufacturers in China. We are engaged in the development, production and sales of ultrac
If you want to know more kinds of supercapacitor specifications, please visit our website.
