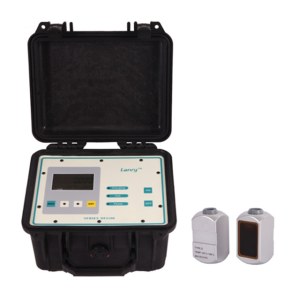

Low flow rate clamp on portable doppler ultrasonic flow meter with battery powered
| DF6100-EP Doppler Portable Ultrasonic Flow Meter Product Description |
| DF6100-EP Doppler Portable Ultrasonic Flow Meter Features |
uRechargeable battery can work up to 50 hours
uIt is suitable for pipe sizes ranging from 40 to 4000mm
uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
uExcellent low flow rate measurement ability, low to 0.05m/s
uA wide range of flow measurement, high flow rate can reach 12m/s
uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃
uDo not need to shut down the pipe flow when installing the transducers
uUser-friendly configuration
u4-20mA, Relay Totalizer and Relay Alarm outputs
uAccuracy: 2.0% Calibrated span
| DF6100-EP Doppler Portable Ultrasonic Flow Meter Specification |
Technical Parameters:
Specifications: Transmitter
|
Measurement principle |
Doppler ultrasonic |
|
Resolution |
0.25mm/s |
|
Repeatability |
0.2% of reading |
|
Accuracy |
0.5% -- 2.0% F.S. |
|
Response time |
2-60s for optional |
|
Flow Velocity Range |
0.05- 12 m/s |
|
Liquid Types Supported |
Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron. |
|
Power Supply |
AC: 85-265V |
|
Enclosure type |
Portable |
|
Degree of protection |
IP65 according to EN60529 |
|
Operating temperature |
-20℃ to +60℃ |
|
Housing material |
ABS |
|
Measurement Channels |
1 |
|
Display |
2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
|
Units |
User Configured (English and Metric) |
|
Rate |
Rate and Velocity Display |
|
Totalized |
gallons, ft³, barrels, lbs, liters, m³,kg |
|
Communication |
4-20mA,relays for Totalizer and alarm output |
|
keypad |
6pcs buttons |
|
Size |
Transmitter: 235X125X45mm case: 410X320X80mm |
|
Weight |
3kg |
Specifications: Transducer
|
Transducers Type |
Clamp-on |
|
Degree of protection |
IP65. IP67 or IP68 according to EN60529 |
|
Suited Liquid Temperature |
Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
|
High Temp.: -35℃~200℃ for short periods up to 250℃ |
|
|
Pipe diameter range |
40-4000 mm |
|
Transducer Size |
60(h)*34(w)*33(d)mm |
|
Material of transducer |
Aluminum for standard temp. sensor, peek for high temp. sensor |
|
Cable Length |
Std: 5m |
| DF6100-EP Doppler Portable Ultrasonic Flow Meter Application |
| Customer Visiting |
|
Company profile |
Lanry Instruments is the professional manufacturer of flow detection instruments, provides one package service of re-search and development, production, marketing and after-sales services. Engaged in the production of flow instruments more than 20 years, Lanry has been equipped with advanced design capabilities and piled up a wealth of field application experience, which lays solid foundation for the commitment to the promotion and innovation of high-tech system solution. The corporation has devoted to the production of flow measurement instruments with superior performance, high stability and strong reliability. Currently, Lanry Instruments has developed into two branches as Lanry Instruments (Shanghai) Co., Ltd. and Lanry instruments (Dalian) Co., Ltd, which are responsible for different areas and applications.Adhering to the "high quality, high efficiency " business principles, Lanry instruments takes quality as its life. Sticking to the "integrity innovation, win-win" development principles, we do sincere business and sets sights on technology innovation. Therefore, it is believed that with the top-class product quality, first-class business management and first-ranking customer service, the corporation is supposed to cooperate sincerely,develop mutually and then create brilliance together with customers!
|
Certifications |
|
Packing for Transportation |
With years of export experience along with excellent quality, advanced services and competitive prices, Lanry has won numerous customers' trust and support all over the world.
Delivery by Express
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
