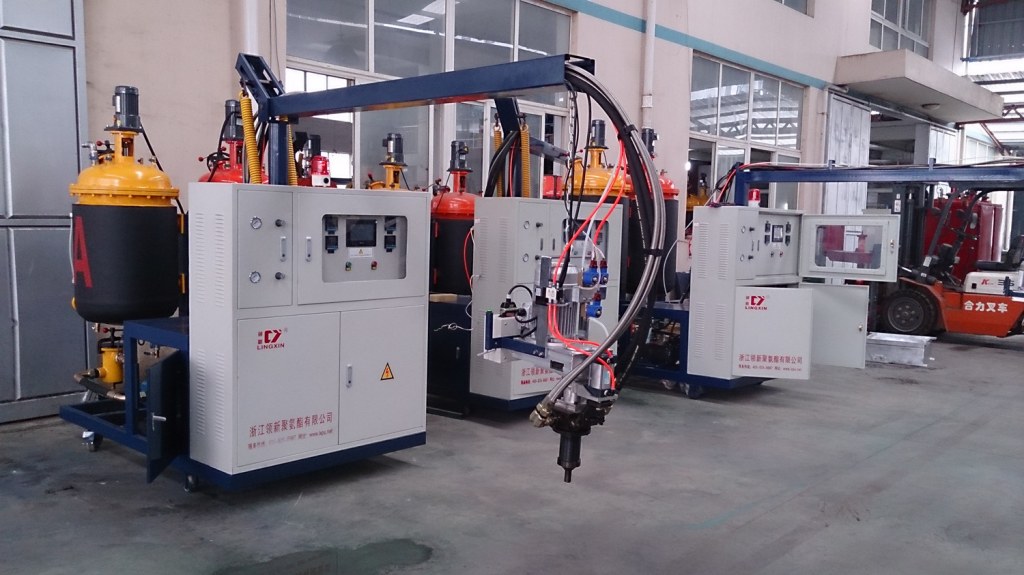

Low pressure PU foam machine

Equipment Overview:

PU foaming machines are used by most users in the market,which have the features of economy and convenient operation and maintenance,etc. the machines can be made according to customers' requirement for various flow rate.

Equipment Characteristics:

Sandwich type material bucket, good heat preservation.

PLC touch screen human-computer interface control, easy to use and the operating situation of machines easy to see.

New type mixing head, even mixing, low noise, and the machine sturdy and durable.

Imported pumps, accurate metering.

Technical Parameter:

Injection output: 0.9-900g/s
Material tank volume: 30L-120L

Mixing ratio range: 100: 50~150 for rigid foam making model, 100: 28 ~ 48 for flexible foam making model.
Mixing head: 2800-5000rpm, forced dynamic mixing

Compressed air needed:
dry, oil free, P: 0.6-0.8MPa
Q: 600NL/min(customer-owned)

Nitrogen requirement:
P: 0.05MPa
Q: 600NL/min(customer-owned)

Temperature control system: heat: 2*3Kw
Input power: three-phase five-wire 380V 50HZ
Rated power: 8KW-12KW


Color( customizable): Cream-colored/orange/deep sea blue
Weight: 600Kg-1200Kg

Dimension: Micro-scale 1000(L)*1750(W)*1800(H)mm

Normal: 4100(L)*1250(W)*2300(H)mm

Final Product Examples:

Pillows, steering wheels, bumpers, integral skin, fast rebound, slow rebound, fitness equipments, thermal insulation materials, bicycle cushions, car cushions, hard foaming, refrigerator materials, medical appliances, elastomer, soles, etc.

Localisation : International Auto Industrial Park Tangxia, 325204 Tangxia,
Personne à contacter : Anna Kim, 0086 577 65336577
