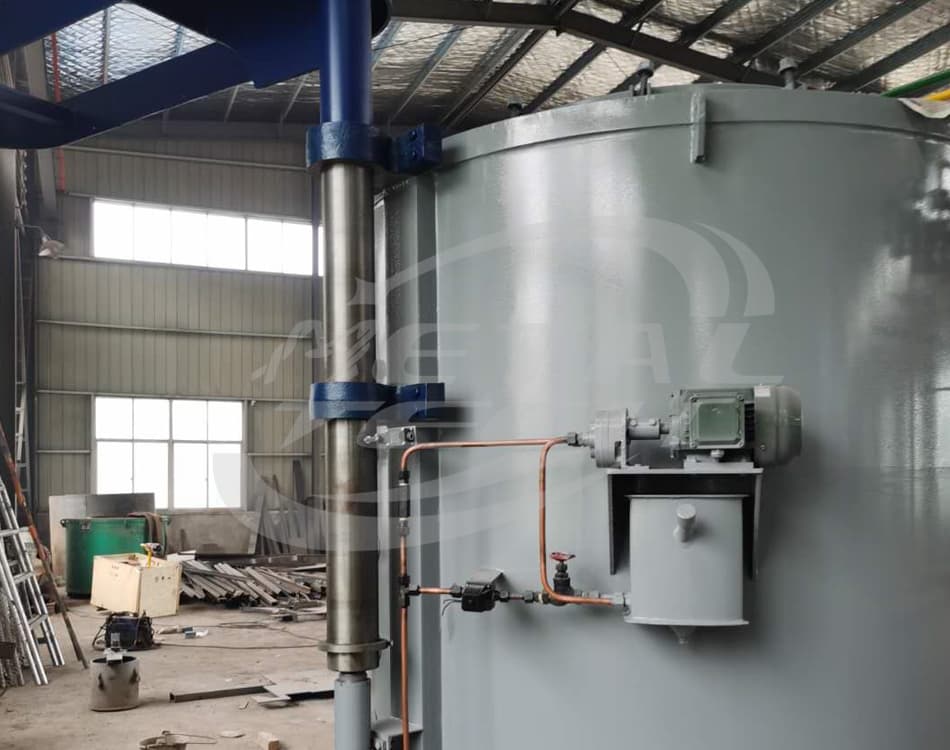

LPG Annealing Furnace
Metal tech Oil Annealing furnace is one of the heat treatment equipment in the mechanical industry. Which put the wire or metal parts in different heating furnaces, slowly heat them to a certain temperature, keep them for a period of time, and then cool them at an appropriate speed (usually natural cooling, sometimes controlled cooling).
According to different energy sources, it can be classified into electric energy, gas energy and oil energy. Users can choose according to their own situation. This is the annealing furnace of Oil energy.
Specifications of LPG Annealing Furnace
|
Furnace specification |
Power supply: Oil |
|
Capacity: 2.0T/8hours |
|
|
Burner: Baltur (Italy brand) |
|
|
Furnace Body |
5mm Q235 board furnace shell |
|
Lightweight firebrick Internal liner |
|
|
Holocellulose alumina silicate keeping temperature |
|
|
Heating element: Cr20Ni80 |
|
|
Furnace Tube |
Thickness: 8mm |
|
Dia: 800mm |
|
|
high: 1200mm |
|
|
Material: Stainless Steel |
|
|
Working Process of Annealing Wire |
a. Two hours heating to 650°C-700°C |
|
b. Keeping Temperature 650°C-700°Cfor 2 hours |
|
|
c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C |
|
|
d. Taking out of the tube put another one in |
|
|
e. When the tube temperature is below 170°C, take the wire out |
Advantages of LPG Annealing Furnace
Metal tech Annealing furnace use high-quality material parts, strict quality management all these guarantee superior quality and long performance Annealing furnace life.
Details of LPG Annealing Furnace
Metal Tech Case of LPG Annealing Furnace
As a reliable annealing furnace manufacturer, we have types of related products for sale, if you have needs, please contact us.
We also have types of weld mesh manufacturing machine for sale, if you have needs, please leave us a message.
