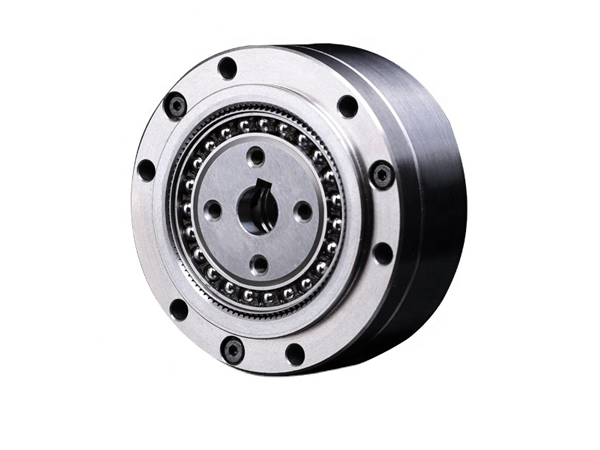

LSD Shorten Thin Harmonic Gearbox
Prix : 400 USD
The LSD series is a newly developed strain wave gear/drive series based on the LSS series to fulfil the needs of the market. This type of mini harmonic drive only uses a uni-body type wave generator. Compared with the LSS series, the LSD strain wave gearbox is more compact and thin-walled. Its size is much smaller.
As a professional strain wave gear manufacturer, Laifual provides strain wave gearboxes that can be widely applied in various scenarios.
Applications of LSD Strain Wave Gearing:
Industrial robots;
Service robots;
Metal machine tools;
Printed circuit manufacturing equipment;
Wood, light metal, plastic machine tools.
Features of LSD Shorten Thin Harmonic Strain Wave Gearbox
Super thin, compact
Hollow structure
High load capacity
High position accuracies
Specification of LSD Shorten Thin Harmonic Strain Wave Gearbox
Rated Parameter Table of LSD Series Shorten Thin Harmonic Strain Wave Gearbox
|
Model |
Reduction ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed(grease) |
Permissible average input rotational speed(grease) |
Backlash |
Design life |
||||
|
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
r/min |
r/min |
Arc sec |
Hour |
||
|
14 |
50 |
3.7 |
0.38 |
12 |
1.2 |
4.8 |
0.49 |
24 |
2.4 |
8500 |
3500 |
≤30 |
7000 |
|
80 |
4.2 |
0.43 |
16 |
1.6 |
5.9 |
0.6 |
31 |
3.1 |
|||||
|
100 |
5.4 |
0.55 |
19 |
1.9 |
7.7 |
0.79 |
35 |
3.6 |
|||||
|
17 |
50 |
11 |
1.1 |
23 |
2.3 |
18 |
1.9 |
48 |
4.9 |
7300 |
3500 |
≤30 |
10000 |
|
80 |
14 |
1.4 |
30 |
0.3 |
21 |
2.1 |
58 |
5.9 |
|||||
|
100 |
16 |
1.6 |
37 |
3.8 |
27 |
2.8 |
71 |
7.2 |
|||||
|
20 |
50 |
17 |
1.7 |
39 |
4.0 |
24 |
2.4 |
69 |
7.0 |
6500 |
3500 |
≤30 |
10000 |
|
80 |
21 |
2.1 |
46 |
4.7 |
30 |
3.1 |
81 |
0.8 |
|||||
|
100 |
28 |
2.9 |
57 |
5.8 |
34 |
3.5 |
95 |
9.7 |
|||||
Zhejiang Laifual Drive Co., Ltd. is a national high-tech enterprise founded in 2013, mainly engaged in research and manufacture of high precision harmonic reducers and planetary gear reducers. We provide LSD Shorten Thin Harmonic Gearbox, LFS Ultra Flat Harmonic Gearbox, zero backlash gear, harmonic gear and so on. Want to know more? Please contact us.
Personne à contacter : Zhang Sky , 0575 89303973
