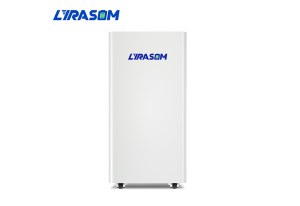

LY-UPS-5K5 SMART HOME UPS
With overload, over temperature and short circuit protection, auto restart, smart battery charger design and zero-transfer time, LY-UPS-5K5 ensures optimized performance at all times. Compatible to mains voltage, generator power and with cold start function, this is a must-have for every modern home.
Specifications Of LY-UPS-5K5 Smart Home UPS
Model |
LYH-UPS-5K5-L |
LYH-UPS-5K10-L |
LYH-UPS-5K15-L |
Rated Power |
5000VA/5000W |
||
Caoacity |
4.8KWH |
9.6KWH |
14.4KWH |
INPUT |
|
|
|
Voltage |
230 VAC |
||
Voltage Range |
110-280 VAC |
||
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
||
OUTPUT |
|
|
|
AC Voltage Regulation |
230 VAC ± 5% |
||
Output THDv |
≤ 3% for linear load, ≤ 8% for non-linear load |
||
Surge Power |
10000VA for 5 sec |
||
Efficiency(Peak) |
93% at Line Mode, 90% at Battery Mode |
||
Transfer Time |
0ms |
||
Waveform |
Pure sine wave |
||
BATTERY |
|
|
|
Battery Voltage |
48 VDC |
||
Voltage Range |
42-54.8V |
||
Capacty |
4.8KWH |
9.6KWH |
14.4KWH |
Cycle life(80% DOD,25°C) |
6000 |
||
Cell type |
LFP |
||
Battery Protection |
Over-current/Over-voltage/Short circuit/Under-voltage/Over temperature |
||
Max continue charge current |
60A |
||
Max continue discharge current |
100A |
||
Charge temperature |
0-55°C |
||
Discharge temperature |
-20-60°C |
||
SOLAR CHARGER & AC CHARGER |
|
|
|
Solar Charger Type |
MPPT |
||
Maximum PV Array Open Circuit Voltage |
145 VDC |
||
Maximum PV Array Power |
4000W |
||
MPP Range @ Operating Voltage |
60-115VDC |
||
Maximum Solar Charge Current |
80A |
||
Maximum AC Charge Current |
60A |
||
Maximum Charge Current |
140A |
||
OUTPUT PORTS |
|
|
|
PV input |
1 |
||
AC input |
1 |
||
AC Ouput |
3 |
||
Wireless charging pad |
15W x 2 |
||
USB |
2 |
||
PHYSICAL |
|
|
|
Dimension, D x W x H(mm) |
380 x 380 x 750 |
380 x 570 x 750 |
380 x 760 x 750 |
Net Weight(kg) |
75 |
140 |
220 |
Communication Interface |
/ |
||
IP protection |
IP21 |
||
Installation |
Floor Mounted Installation |
||
ENVIRONMENT |
|
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Operating Temperature |
0°C to 55°C |
||
Storage Temperature |
-15°C to 60°C |
||
WARRANTY |
|
|
|
Warranty |
5years |
||
Life Span |
10years |
Features Of LY-UPS-5K5 Smart Ups for Home:
Pure sine wave output
Built-in MPPT solar charge controller
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Zero-transfer Time
Application Scenarios Of LY-UPS-5K5 Smart Home UPS:
Residential electricity;
Villages where there is no electricity or there is insufficient electricity;
High-end villas/clubhouses;
Industrial and commercial users.
Now the price of 48 volt 200ah lithium battery, 48 volt 100ah lithium battery, lithium battery 60v 30ah and 72v 20ah lithium battery is reasonable, if you are interested, please contact us.As one of battery energy storage system companies, we will do our best to meet all the needs of customers.
