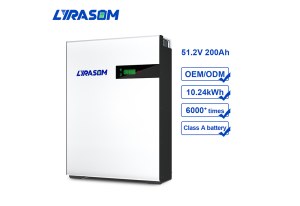

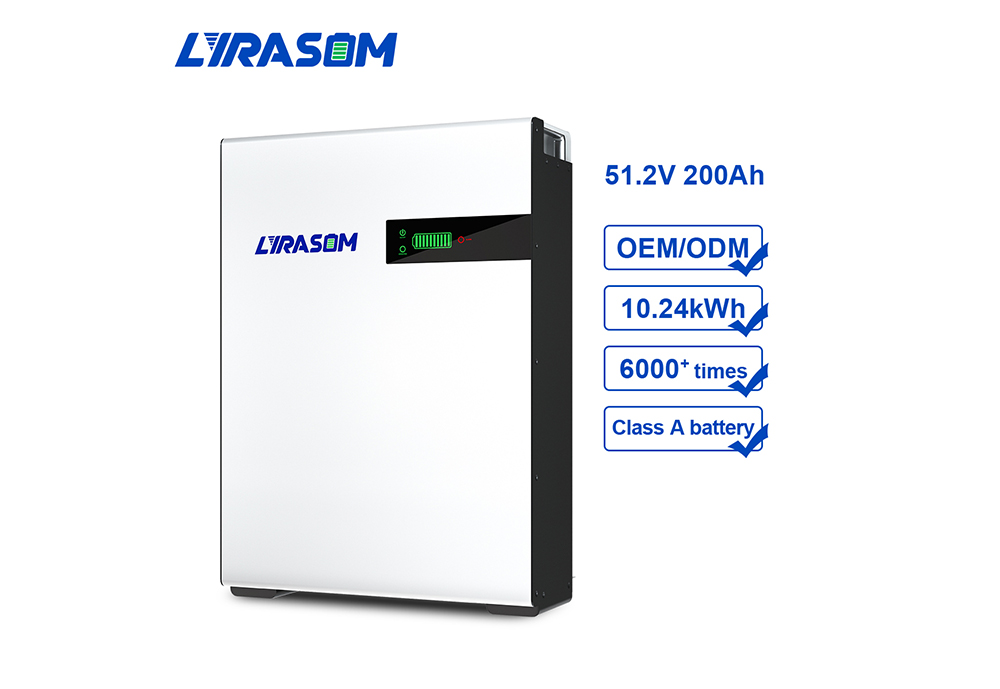

LYH48200-L(F) WALL ENERGY STORAGE BATTERY
Lyrasom home solar energy storage series: LYH48200-L can provide users with a higher quality product experience and it has a longer service life because it adopts a simpler and more generous screenless design, and the most advanced assembly technology and the automotive-grade A battery. It uses the upgraded lithium-ion batteries with the latest battery technology.
Lyrasom lithium battery model is suitable for all kinds of intelligent home appliances, and it has long time power supply and stable discharge performance. The company has an independent BMS R&D team to provide more effective battery protection, improve battery stability, and extend battery life.
Specifications Of LYH48200-L(F) Wall Battery and Energy Storage
|
Model Name |
LYH48100-L(W) |
LYH48200-L(F) |
|
Nominal Capacity |
100Ah |
200Ah |
|
Nominal Voltage |
51.2V |
51.2V |
|
Energy |
5.12kWh |
5.12kWh |
|
Voltage |
48~58.4Vdc |
48~58.4Vdc |
|
Standard Charge Current |
50A |
50A |
|
Max. Charge Current |
100A |
100A |
|
Standard Discharge Current |
50A |
50A |
|
Max. Continues Discharge current |
100A |
100A |
|
Peak Current |
150A ≤5s |
150A ≤5s |
|
Module Parallel |
Up to 8 packs |
|
|
Cycle Life |
6000 times, 25°C |
|
|
Working Temperature Range |
Charge: 0°C~-550°C |
|
|
Discharge: -20°C~-60°C |
||
|
Storage Temperature |
-10°C~-50°C |
|
|
Communication |
CAN/RS485 |
|
|
Battery Protection |
Over-current/Over-voltage/Short circuit/ |
|
|
Under-voltage/Over temperature |
||
|
Dimension |
H580xW447xD150mm |
H880xW620xD175mm |
|
Weight |
Approx.55kg |
Approx.100kg |
|
Installation |
Wall |
Floor |
|
Warranty |
5 years |
|
|
Life Span |
>10 years |
|
Features Of LYH48200-L(F) Wall Energy Storage Battery:
Installation: Wall mounted/ Floor Mount.
Matched with various global top lnverter brands.
High safety standard of LFP (LiFePO4) cell.
Long life battery design supported by the efficient equalization technology.
Advanced BMS protection functions.
Widely used for home solar energy storage system , telecom back-up, central data center... etc.
Applications Of LYH48200-L(F) Wall Energy Storage Battery:
Residential electricity;
Villages where there is no electricity or there is insufficient electricity;
High-end villas/clubhouses;Industrial and commercial users.
Now the price of battery lifepo4 48v 200ah is reasonable, anything you need, please contact us.
If you want to know more types of ess solar systems, please visit our website.
