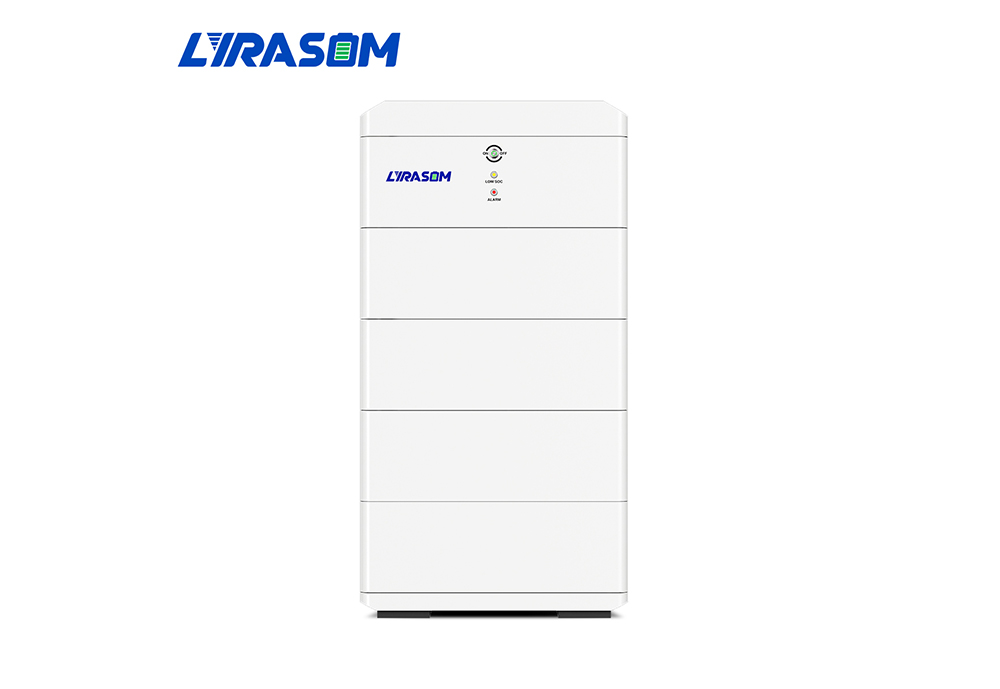

LYH4850-H(S) HIGH VOLTAGE STACK MOUNT BATTERY
This stacked battery pack is perfect for demanding energy storage applications, with options for 10kWh and 15kWh Lithium Iron phosphate battery capacity. The High voltage stack Mount Lithium ion technology allows for easy expansion, supporting both series and parallel connections to create larger capacities and voltages. The intelligent built-in BMS ensures stable and safe performance, while the compact size allows for easy installation. Compatible with many famous brand inverters, this energy storage battery pack is the perfect choice for your energy storage needs.
Specifications Of LYH4850-H(S) High Voltage Stack Mount Battery
Battery Module |
LYH48100-L(S) |
LYH48500-H(S) |
Usable Energy |
5.12kWh |
2.56kWh |
Max Output Current |
100A |
50A |
Peak Output Current |
110A |
80A |
Nominal Voltage |
51.2V |
51.2V |
Operating Voltage |
44.8V-58.4 |
44.8V-58.4 |
Dimensions (H/W/D) |
700x400x195 |
480x380x195 |
Weight |
Approx.55kg |
Approx.30kg |
Battery System |
Parallel |
Series |
Number of Modules |
1-8P |
2-12S |
Usable Energy |
5.12kWh x N |
2.56kWh x N |
Max Output Current |
100A x N |
50A |
Peak Output Current |
110A X N |
80A |
Nominal Voltage |
51.2V |
51.2V x N |
Operating Voltage |
44.8v-58.4 |
(44.8V-58.4)xN |
Dimensions (H/W/D) |
700x400x(195xN) |
480x380x(195xN) |
Weight |
50kgxN |
30kgxN |
Protective Class |
IP54 |
|
Communication |
CAN/RS485 |
|
Battery Protection |
Over-current/Over-voltage/Short circuit/Under-voltage/Over temperature |
|
Warranty |
5 years |
|
Life Span |
>10 years |
Features Of LYH4850-H(S) High Voltage Stack Mount Battery:
96V,144V,192V…….customized.
Support to be connected in parallels and in series for large capacity and voltage.
Safety/Reliable LFP cell, longer cycle life with higher energy density.
Intelligent BMS built-in, stable performance.
Compact size for easy installation.
Diverse model options and Expansion.
Many famous brand inverters compatible.
Applications Of LYH4850-H(S) High Voltage Stack Mount Battery:
Communication base station;
Data center;
Communication outdoor cabinet;
Solar hybrid power system;
Home energy storage system.If you want to know more kinds of 48v lithium ion solar battery, 60v lithium ion battery and 72v lithium battery pack, please visit our website.
Now the 100ah lithium ion battery price is reasonable, anything you need, please contact us.As a battery storage energy system manufacturer, we will do our best to meet all the needs of customers.
