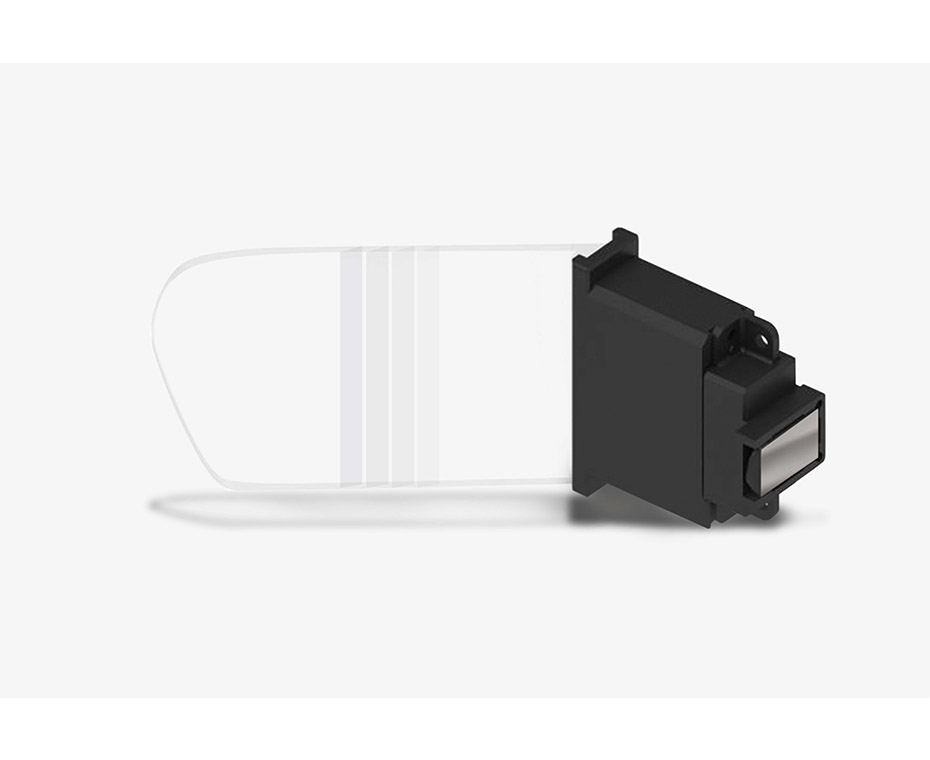

M2026 AR Optical Module
Quantité : 5000pcs/mo Prix : 300-1500
M2026 uses Micro OLED plus array optical waveguide technology, which is a side-entry module, mainly used for normal-form AR glasses.
Its characteristics are light and thin, and the weight of a single module is about 12g.
The light transmittance of the array light guide is more than 80%, which is close to the light transmittance of normal glasses. Compared with other peers using this technology, our module has a larger FOV, less distortion, and higher brightness.
Technical Specifications Of M2026 Optical Module
|
item |
Spec |
M2026 |
|
Field of View |
Diagonal FOV |
26° |
|
|
Technology |
0.23' OLED |
|
Aspect ratio |
16: 10 |
|
|
Horizontal display resolution |
640pixels) |
|
|
Horizontal display resolution |
400pixels |
|
|
FPS |
60Hz |
|
|
Pixel Pitch |
8μm |
|
|
Panel dimensions |
5.054×3.276mm |
|
|
|
Eyebox |
7.6x7mm |
|
Eye Relief |
22mm |
|
|
|
Virtual imaging size |
55''@3m |
|
Contrast |
100000：1 |
|
|
Optical distortion |
<2%</span> |
|
|
See-through transmission |
See-through transmission |
>80% |
|
Weight |
Weight |
12g |
|
Optical module seize |
seize |
24.5*23.5*8.5mm |
Contrast Between Oled and Lcos AR Optical Module
Micro OLED has a higher contrast ratio without a light white background. The Lcos display is similar to a screen due to its low contrast. Compared with OLED, Lcos has higher brightness, higher resolution, and higher power consumption and volume weight.
Goolton is a professional mixed reality companies, we provide waveguide ar glasses, ar waveguide, waveoptics and etc. Want to know more about company ar? Please contact us.
Personne à contacter : ton gool, 010 82185352
