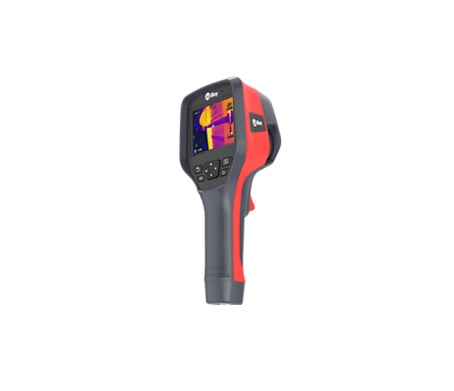

M600 Thermal Hand Scanner
thermal scanner handheld
M600 Handheld Thermal Camera is high-resolution and manually focused. It is provided with a built-in self-developed 12μm high-performance 640×512 infrared detector and a 5,000,000-pixel visible light camera of 35 mK thermal sensitivity and 30 Hz high frame rate. With its accurate manual focusing function, it can save focusing time and provide accurate data and clear images to meet the requirements of research and analysis work. With its excellent characteristics, Tianxuan M600 Handheld Thermal Camera is the right-hand assistant for engineers in scientific research, professional equipment, and building inspection.
Thermal resolution: 640×512
Temperature resolution: 35mK
Measurement accuracy: ±2°C
Features of M600 Thermal Scanner Handheld
640×512 high-performance temperature measurement core
Real 320,000 real-time infrared temperature measurement points + 5,000,000-pixel visible light resolution.
High resolution, high frame rate, high accuracy, wide range, all in Tianxuan M600.
USB plug and analyze, support full-frame real-time transmission and analysis of temperature information.
Advanced interaction function, visible display of temperature result
Three-point temperature display, custom point/line/area temperature measurement.
Complete analysis data on PC, easy to operate the APP.
Built-in 5 image modes+10 color palettes.
Support full-frame high/low temperature alarm and timed photographing.
Easy-to-use and reliable overall performance
Solid and durable, IP54 + 2m-drop protection.
Video of M600 Thermal Hand Scanner
Specifications of M600 Thermal Hand Scanner
|
Model |
M600G |
|
Detector Type |
Uncooled VOx IRFPA |
|
Detector Resolution |
640x512 |
|
Spectral range |
8-14μm |
|
Pixel pitch |
12μm |
|
Thermal sensitivity/NETD |
35mK |
|
IFOV |
1.31mrad |
|
Frame rate |
25Hz |
|
Focal length |
9.1mm |
|
FOV |
48°x38° |
|
Focus mode |
Manual focus |
|
Temperature measurement range |
-20 ℃～ 150 ℃ , 100 ℃～ 550 ℃ |
|
Measurement accuracy |
±2% or ±2℃ |
|
The Min. measurable temperture difference |
0.1°C |
|
Measurement mode |
Center spot/hot and cold spot tracking and temperature display |
|
Custom temperature measurement tools |
Movable spot/line/area temperature measurement, up to 10 spots, 10 areas,10 lines |
|
Temperature measurement unit |
Celsius, Fahrenheit, Kelvin |
|
Emissivity settings |
0.01-1.00，step length 0.01 |
|
Ambient temperature settings |
-10~50℃，setp length 1℃ |
|
Distance settings |
1-20m，setp length 1m |
|
Digital zoom |
1×, 2×, 4×, 8× |
|
Image mode |
Thermal, dual-spectrum fusion, visible light, PIP |
|
Color palettes |
10 kinds |
|
Temperature alarm |
Support |
|
Alarm type |
Image alarm |
|
Temperature Scale |
Auto/Manual |
|
Laser Pointer |
Yes |
|
Digital camera |
5MP |
|
Image/video Storage |
Jpg images with temperature data in thermal and visible light modes； |
|
Voice annotation |
Yes |
|
Language |
English, Polish, Russian, Korean, Hungarian, Brazilian Portuguese, German, French, Spanish, Italian, Turkish, Traditional Chinese |
|
Screen |
3.5-inch touch screen（480x640） |
|
Image naming |
Auto/manual input, QR code scanning |
|
Memory card |
standard 32GB MicroSD card |
|
Battery type |
Rechargeable and detachable Lithium battery |
|
Power interface |
USB Type-C |
|
Data Communication Interfaces |
USB, WiFi |
|
Charging time |
about 3h |
|
Battery operating time |
about 3h |
|
Power Management Interfaces |
Auto shutdown: 5 minutes, 10 minutes, 20 minutes, off) |
|
Analysis software |
PC（Infrared analysis software）or mobile （IOS/Android APP） |
|
Tripod mounting interface |
1/4″-20-UNC |
|
Operating temperature range |
-10~+50°C |
|
Storage temperature range |
-20~+60°C |
|
RH |
10% ~ 95%,no condensation |
|
Drop |
2m |
|
Encapsulation |
IP54(IEC 60529) |
|
Shock &Vibration |
Shock 25g(IEC 60068-2-27)；Vibration 2.5g(IEC60068-2-6) |
|
Camera Dimension（LxWxH） |
258.4 × 105.1 ×102.3mm |
|
Weight |
about 670g |
|
Standard accessories |
|
As one of thermal imaging camera manufacturers, we will do our best to meet all the needs of customers.
