Machine de SMT/machine/fabricant de transfert du morceau mounter/PCB
Quantité : 100 Prix : $4720
iSuiRrui

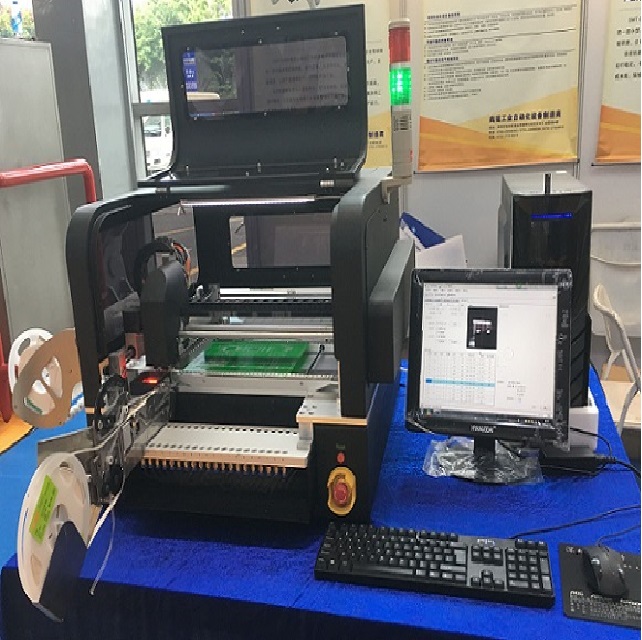

Desktop Automatic Budget SMT6000V
Product introduction
SMT6000V is dedicated to research and develop electronic products, it is a small desktop type machine which suits for small and medium-sized enterprise assembly line is developed by our company. This machine has superior function 1.small batch production. 2. Experiment, research and development. 3. Sample Preparation and trial-produce. 4. Processing and Mounting LED SMT, etc.
The main characteristic of SMT6000V is small volume, Mounting very fast, high precision when it works, simple operation, stable running and competitive price. Not only can help you to avoid the mounting instability by man-made, but also can help you to solve the problem like high labor cost, high site cost, low production efficiency, and so on. Our product can greatly improve the productivity.

Product Technical Specification
| SMT6000V Specification | ||
| Visual System | up and down visual system | |
| Visual function | Mark point positioning function | |
| Applicable PCB | 20mm*20mm~470mm*376mm | |
| Placement Head Quantity | 2 | |
| Feeders | 20 | |
| Strip Roller Quantity | 27 | |
| IC Tray | 2 Shelves (+ Simple Tray IC Shelf) | |
| Mounting Capability | 3000PCS/h | |
| Mounting Accuracy | ±0.03mm | |
| Applicable Components | 0402~24mm, CHIP, SOP, QFP, SOT (Tape Width: 8mm,12mm,16mm,24mm) | |
| External Dimension | 648*690*470 | |
| Vacuum Pump | (Included, Mute Pump)-92KPA | |
| Vacuum Pump Quantity | 2(Included, Mute Pump) | |
| Power Supply | 220V , 50Hz | |
| Average Working Power | 100W | |
| Net Weight | 63.5KG | |
| Total Weight(including the packing) | 90KG | |
Product features
Ø On the basis of programming and control system of WindowsXP, it is supported to import the coordinate file and online programming

Ø vision correction
Mounting vision correction

Machine tool vision correction

Ø 2 Placement Heads can work in the same time and the mounting range is big. It supports big and thick component. 4 placement heads can be choosed

Ø Laser alignment, online programming

Ø Vacuum detection, intelligent discriminant good or bad adsorption
Ø Detection of material lack, automatic alarm
Ø Support multi-feeding ways: feeder belt, feeder, IC tray, IC material tray




Ø Encapsulation apply
| 1)common resistance, capacitance, inductance and diode 2) SOP series 3)QFN、TQFP 4)TO252 SMA SMB 5)SOT series |
![]() |
![]() |
![]() |
| SOP-8 (SO8) narrow | SSOP-20 wide | TSOP-44 | |
![]() |
![]() |
![]() |
|
| SMA | SMB | OT252 | |
| 0402,0603 0805,1206 1210,1812 2010,2512 3528,5050 |
![]() |
![]() |
|
| LL34 | TQFP-144 | ||
![]() |
![]() |
![]() |
|
| SOT-223 | SOT-23 | SOT-89 |
Personne à contacter : Talia Liu, +86 13528707721
Bonne affaire : acheter au vendeur
