Made in China woodworking engraving machine
Quantité : 1set Prix : USD$21500

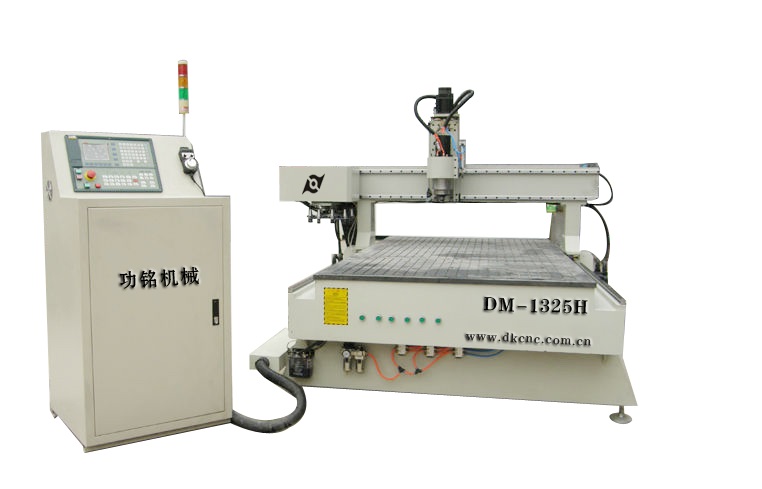

DM-1325H
Characteristics:
It is an Automatical Tool Change machine(ATC).The excellence of this models is the price and the automatical tool change function. Best spindle,three-axis square guide drive, Japan servo motor etc are the main components which have to import from abroad. It is a machine with high configuration, the double-track bilateral with LNC Taiwan-motivation, also a heavy cutting-processing models.
1.Sub-keyboard control: simple, convenient and easy to learn the sub-keyboard operation, the user can quickly flexible use the equipment. More independence.
2.Taiwan's advanced CNC control systems, intelligent processing cross-border protection functions: preventing machinery from colliding due to that design layout exceeds process range.Intelligent processing speed control: the processing speed can be controlled separately, truly improving processing efficiency, extending tool life and increasing the yield.
3.Cleaning, adsorption devices: cleaning system can take the wood flour in the course of processing wood to matain the table clean and disguise maintenance for the equipment;absorption system replaces the previous way of mechanically fixing plate to improve the processing time for the plate.
4.The advanced file pretreatment function helping users promptly corrected the mistakes in processing documents with good compatibleness for the proceeding code generated by domestic and foreign multi - Kind of software (such as Mastercam, Typ3, UG, Artcam, Caxa, etc.).Advanced three-dimensional curves prediction algorithm, steady foldline to ensure the speed and accuracy of the curve.
5.Windows-based platform for the NC embedded systems,unlimited upgrad and expansion fuction. Synchronization of anti-jamming software and hardware design, to ensure that System time is in reliable operation. A breakpoint, continued carving off function, back to oringinal point with automatic correction features effectively guaranteed the accuracy of in a long processing work.
6.Seamless steel structure welding with strong rigidity undeformed character.
Applicable Industry:
Furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, panel furniture, office furniture, wood Speaker system, kitchen utensils, and other wooden furniture processing.
Performance Parameter:
Product model |
DM-1325H |
X,Y working area |
1300*2500mm |
Z working area |
220mm |
Processing precision |
0.02mm |
Reposition precision |
0.05mm |
Table structure |
Vacuum table |
X,Y,Z structure |
Z ball screw X,Y gearwheel |
Self-consuming power |
2.8KW |
Max idling speed |
40000mm/min |
Max working speed |
25000mm/min |
Way of ATC |
Arm |
The number of knife |
8pcs or 10pcs |
Spindle power |
7.5KW |
Working voltage |
AC380V/50Hz |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Japan servo motor |
Control system |
LNC Taiwan |
Compatible CAD/CAM software |
TYP3/Artcam/Castmate/Ucancam |
Surroundings for software |
Windows98/2000/xp |
Net weight |
2000kg |
Gross weight |
2300kg |
Ways of ATC with different price,which depends on your requirement.
1.Linear Type ATC
2.Arm Type ATC
The above configuration can be changed according to your needs.
Cantact: kerry@gmcnc.net skype : kerry_1814 phone : 008618766195920
Personne à contacter : Kerry Xiao, 008618766195920
