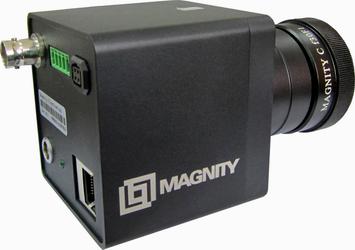

MAG32 Online Thermal Imager
Quantité : 1000 Prix : 9000-18000
MAG32 is a high-quality thermal imager for all applications where superior image quality and measurement precision are both crucial.
With an advanced high resolution FPA detector, powerful low noise and high speed circuits, as well as advanced image processing algorithms, MAG32 provides high quality images and accurate temperature readings. The compact size and low power consumption make it ideal for system integration. It is the perfect online thermal camera for the most challenging vision and thermography applications.
ONLINE SERIES TECHNICAL SPECIFICATION:
|
|
MAG62 |
MAG32 |
|
Detector |
||
|
Detector Type |
Focal Plane Array, Uncooled Microbolometer |
|
|
Pixel Resolution |
640×480 |
384×288 |
|
Spectral Band |
8～14μm |
|
|
Imaging Performance |
||
|
Field of View (FOV) |
18°×14°/ 25°×19°/ 42°×32° |
15°×11.5°/ 26°×20°/ 38°×29° ( more lens options available) |
|
Spatial Resolution |
~FOV/640 |
~FOV/384 |
|
Thermal Sensitivity (NETD) |
<60mK@30℃</span> |
|
|
Focusing |
0.3m～∞ |
|
|
Maximum Frame Rate |
50Hz |
50Hz |
|
Measurement |
||
|
Temperature Ranges |
-20℃～+150℃/+300℃ |
Up to1600℃ |
|
Accuracy |
±2℃ or ±2% |
|
|
Radiance Correction |
0.01-1.0 |
|
|
Background Temperature Correction |
User Input Environmental Temperature Correction |
|
|
Atmosphere Transmission Correction |
User Input Distance and Humidity Correction |
|
|
Temperature Measurement Mode |
Real Time Temperature Display, User Defined Regions of Interest |
|
|
Automatic Alarming |
User Defined Alarming Threshold, User Defined Points of Interest |
|
|
Imaging Processing |
||
|
Palettes |
9 Palettes, including Grayscale, Grayscale inverted, Ironbow, Hot metal, etc. |
|
|
Image Enhancement |
Manual/Automatic Histogram Balancing/Detail Enhancement |
|
|
Data Storage |
Image, Video, Temperature Data |
Image/Video |
|
Environmental |
||
|
Operating Temperature |
-20℃～+60℃ |
|
|
Storage Temperature |
-40℃～+80℃ |
|
|
Humidity |
≦85%(Non-Condensing) |
|
|
Encapsulation |
IP54 |
|
|
Physical Characteristics |
||
|
Power Supply |
12V DC |
|
|
Dimensions |
62mm×64mm×62mm ( Infrared Lens Excluded ) |
|
|
Size |
0.2kg ( Infrared Lens Excluded ) |
|
|
Signal Interface |
100M Ethernet |
|
|
Video Output |
PAL/NTSC |
|
|
I/O Interface |
1 Input, 1 Output |
|
|
Serial |
RS232 |
|
|
Software |
Included |
|
|
Accessories |
Infrared Lens, Power Supply, Installation CD, User Manual |
|
As one of the most professional image sensor companies, Zillion Techs provides swir imaging, etc. If you want to know more about swir technology, Contact us.
