MAKE FORCE SENSORS SAFER AND SMARTER
Widely used in various occasions requiring force measurement and process monitoring.

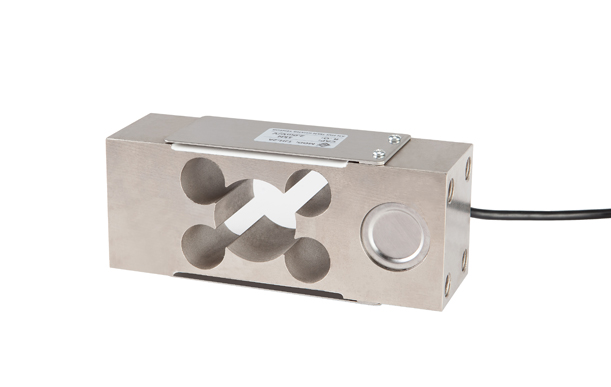

TJH-2A platform scale load cell
The product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales, batching scales, etc.
Specifications of TJH-2A platform load cell
|
Technical Parameter |
|
|
Rated Load |
1~10 kN |
|
Comprehensive Precision |
0.02~0.05% FS |
|
Sensitivity |
2.0 mV/V |
|
Creep |
±0.02% FS/30min |
|
Zero Output |
±1% FS |
|
Temperature Effect On Zero |
±0.02% FS/10℃ |
|
Temperature Effect On Output |
±0.02% FS/10℃ |
|
Operating Temperature Range |
-20~+65 ℃ |
|
Input Resistance |
380±10 Ω |
|
Output Resistance |
350± 3 Ω |
|
Insulation Resistance |
＞5000 MΩ |
|
Safe Load Limit |
150% FS |
|
Bridge Voltage |
Reference 10V DC |
|
Material |
Alloy Steel or Stainless Steel |
|
Load Cell Mode Of Connection |
Input+: Red |
|
Input-: Black |
|
|
Output+: Green |
|
|
Output-: White |
|
Contact us to know more about load cell platform or buy force transducer.
