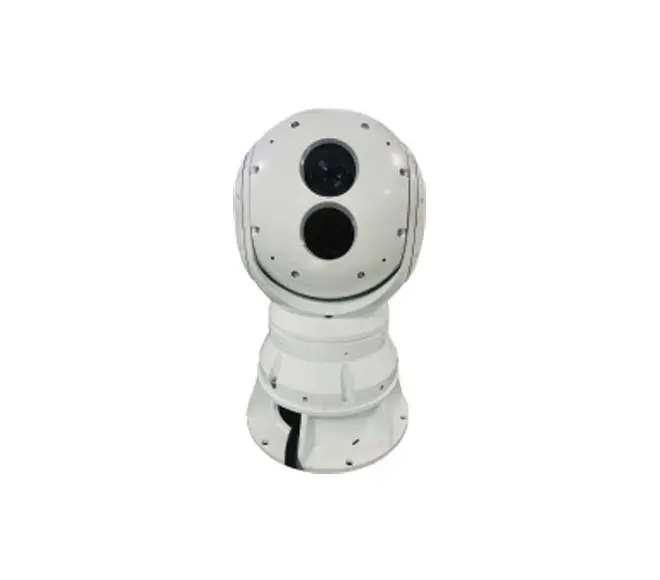

Marine Surveillance System TMG640-C129T100-L
Quantité : 500set/mon Prix : 2000usd
Boat security camera systems TMG640-C129T100-L
Military reconnaissance, targeting, search & rescue, anti-smuggling, evidence collection, security, environment inspection, navigation assistance and so on. This product can be equipped with various types of unmanned vehicles and law enforcement vessels.
Specifications of Marine System TMG640-C129T100-L
|
Visible Camera |
||
|
Detector |
1/2.8 inches |
1/1.8 inches |
|
Lens |
30×continuous zoom (4.3mm~129mm) |
38×continuous zoom (8mm~300mm) |
|
Resolution |
1080P（1920×1080） |
1080P（1920×1080） |
|
IR camera |
||
|
Detector |
Uncooled LWIR detector (8~14um) |
Uncooled LWIR detector (8~14um) |
|
Resolution |
640×512 |
640X512 |
|
Focal length |
continuous zoom 25mm~100mm |
continuous zoom 25mm~75mm |
|
Laser Sensor (Eye-safe Laser class-Ⅰ) |
||
|
Laser Ranging |
Maximum distance：3km/5km optional, Accuracy：±5m |
|
|
Gyro-stabilized PT |
||
|
Accuracy |
≤0.3mrad（1σ） |
|
|
Azimuth Range |
Nx360° |
|
|
Elevation Range |
-30°~+90° |
|
|
El angular Velocity |
≥80°/s |
|
|
Az angular Velocity |
≥80°/s |
|
|
El angular Acceleration |
≥200°/s² |
|
|
Az angular Acceleration |
≥200°/s² |
|
|
Electrical Interface |
||
|
Video Output |
Network HD Video (optional) |
|
|
Communication |
RS422/ Network interface |
|
|
Power |
||
|
External Power |
20~30V DC |
|
|
Power Consumption |
≤200W，peak≤400W |
|
|
Environmental |
||
|
Operating Temp |
-20℃～+65℃/-40℃～+65℃ |
|
|
Storage Temp |
-40℃～+85℃ |
|
|
Image Tracking |
||
|
Integration |
Built-in |
|
|
Function |
HD Auto Tracking /Auto Target Recognition（optional） |
|
|
General |
||
|
Weight |
≤30kg |
|
|
Dimension |
Φ300mm×500mm |
|
Features of Marine System TMG640-C129T100-L
Multi-optical sensors combination
High-accuracy gyro-stabilized platform
Integrate HD Auto Tracking
Anti-mold, anti-moisture, anti-salt spray, designed for operating at harsh marine environments
If you are looking for a reliable thermal imaging manufacturer, don't hesitate to contact us!
For more information about thermal camera application, please feel free to contact us!
