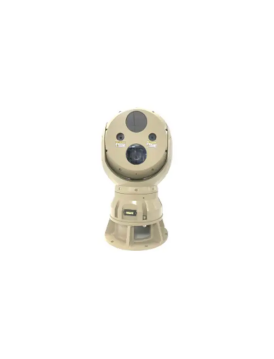

Marine Surveillance System TMG640-C300T150-L
Marine Surveillance Cameras TMG640-C300T150-L
There are many different types of military operations, including reconnaissance, targeting, search and rescue, anti-smuggling, evidence collecting, security, environment inspection, navigation help, and more. It is possible to install this device on a range of unmanned vehicles and law enforcement vessels.
Specifications of Marine System TMG640-C300T150-L
|
Visible Camera |
||
|
Detector |
1/1.8 inches |
1/1.8inches |
|
Lens |
30×continuous zoom (8mm~300mm) |
42×continuous zoom (10mm~420mm) |
|
Resolution |
1080P（1920×1080） |
1080P（1920×1080） |
|
IR camera |
||
|
Detector |
Uncooled LWIR detector (8~14um) |
Cooled MWIR(3~5um) |
|
Resolution |
640×512 |
640X512 |
|
Focal length |
continuous zoom lens 30mm~150mm |
continuous zoom lens 15mm~300mm |
|
Laser Sensor (Eye-safe Laser class-Ⅰ) |
||
|
Laser Ranging |
Maximum distance 5km/10km optional， Accuracy：±5m |
|
|
Gyro-stabilized PT |
||
|
Accuracy |
≤0.3mrad（1σ） |
|
|
Azimuth Range |
Nx360° |
|
|
Elevation Range |
-30°~+90° |
|
|
El angular Velocity |
≥80°/s |
|
|
Az angular Velocity |
≥80°/s |
|
|
El angular Acceleration |
≥200°/s² |
|
|
Az angular Acceleration |
≥200°/s² |
|
|
Electrical Interface |
||
|
Video Output |
Network HD Video |
|
|
Communication |
RS422/ Network interface |
|
|
Power |
||
|
External Power |
20~30V DC |
|
|
Power Consumption |
≤300W，peak≤600W |
|
|
Environmental |
||
|
Operating Temp |
-20℃～+65℃/-40℃～+65℃ |
|
|
Storage Temp |
-40℃～+85℃ |
|
|
Image Tracking |
||
|
Integration |
Built-in |
|
|
Function |
HD Auto Tracking /Auto Target Recognition（optional） |
|
|
General |
||
|
Weight |
≤40kg |
|
|
Dimension |
Φ350mm×525mm |
|
Features of Marine System TMG640-C300T150-L
Combination of several optical sensors
High-precision gyro-stabilized platform
Embrace HD Auto Tracking
Spray that resists mildew, moisture, and salt and is made for use in hostile marine situations
As a thermal camera supplier, we can offer sorts of high resolution thermal imaging camera for sale, if you have needs, please contact us.
