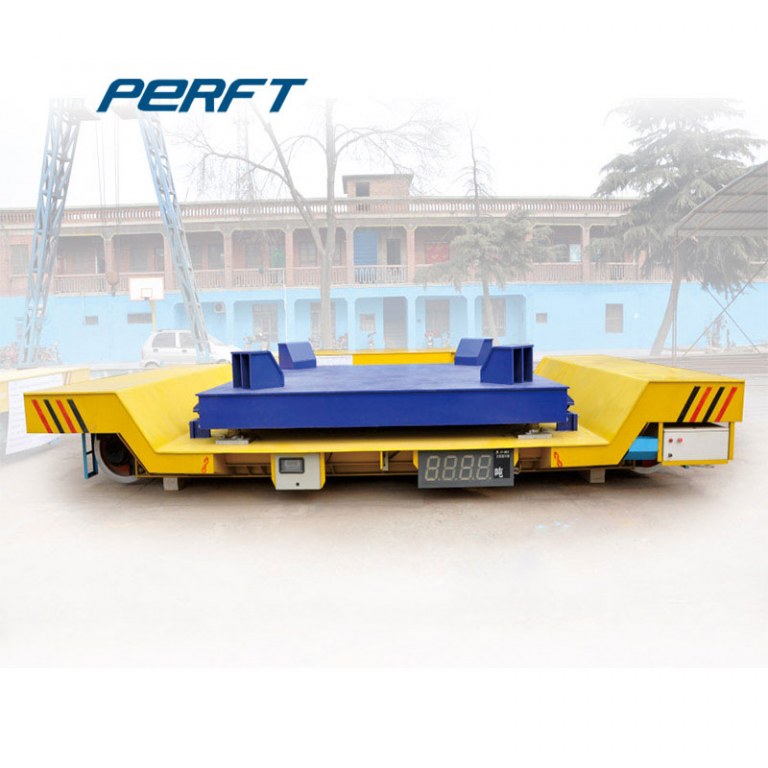

Material Handling molten steel ladle transfer car
Quantité : 30 Prix : 5 000,00 €
Product Application
The electric molten steel transfer car are the new model ones that our engineers design according to the brick suppliers' information for the site situation and requirement. This kind of electric molten steel transfer car can operate smoothly under the situation of high temperature and bad environment. This electric molten steel transfer car is in the high quality, with a low cost and steady performance! It can also meet the clients' various nonstandard requirements.
|
Model
|
BJT-2T
|
BJT-5T
|
BJT-20T
|
BJT-50T
|
BJT-100T
|
|
Rated Load(T)
|
2
|
5
|
20
|
50
|
100 span>
|
|
Length(mm) span>
|
2000< /span>
|
3500< /span>
|
4000< /span>
|
5500< /span>
|
6500< /span>
|
|
Width(mm)
|
1500< /span>
|
2200< /span>
|
2200< /span>
|
2500< /span>
|
2800< /span>
|
|
Height(mm) span>
|
500 span>
|
550 span>
|
600 span>
|
700 span>
|
1000< /span>
|
|
Wheel Base(mm)
|
1200< /span>
|
2500< /span>
|
2800< /span>
|
4200< /span>
|
4900< /span>
|
|
Rail Inner Gauge(mm)
|
1200< /span>
|
1435< /span>
|
2000< /span>
|
||
|
Wheel Diameter(mm) span>
|
270 span>
|
300 span>
|
350 span>
|
500 span>
|
600(heavy) span>
|
|
Ground Clearance(mm)< /span>
|
50
|
75
|
|||
|
Running Speed(m/min) span>
|
0-25< /span>
|
0-20< /span>
|
|||
|
Motor Power(Kw)
|
0.8 span>
|
1.5 span>
|
2.5 span>
|
5.5 span>
|
11
|
|
Max Wheel Load(KN)
|
14.4< /span>
|
25.8< /span>
|
77.7< /span>
|
174 span>
|
343.8
|
|
Reference Weight(t)
|
2.5 span>
|
3.5 span>
|
5.6 span>
|
7.8 span>
|
14.1< /span>
|
|
Recommedded Rail Model span>
|
P18 span>
|
P24 span>
|
P43 span>
|
QU100
|
|




Main Features
1) Simple structure, easy in installation and maintation.
2) The rail wagon platform is sutiable for high-temperature and anti-ecposion condition
3) safety, flexibility, high using frequency, long using time, long service life. span>
4) Custom deck configurations may include lift, tilt, or rotate function.
5) Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
Product Application
The electric molten steel transfer car are the new model ones that our engineers design according to the brick suppliers' information for the site situation and requirement. This kind of electric molten steel transfer car can operate smoothly under the situation of high temperature and bad environment. This electric molten steel transfer car is in the high quality, with a low cost and steady performance! It can
Personne à contacter : Mike Wong, +86 0373 3020116
Bonne affaire : acheter au vendeur
Nous vous invitons à lire nos conditions générales d'utilisations. Vous pouvez aussi vous rendre sur nos FAQ et consulter notre page d'informations sur les risques liés à la contrefaçon.
|
Cette page concerne les importateurs et exportateurs de Material Handling molten steel ladle transfer car Rechercher dans la catégorie : Bâtiment Rechercher dans la catégorie : steel, transfer, ladle, material, handling, molten |
