MB300 Universal Pressure Transmitter
Détails
Chine (Rép. pop) Bâtiment
Bâtiment

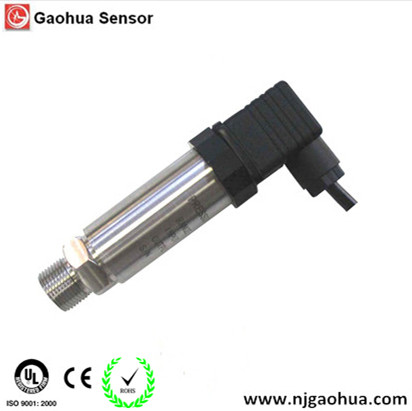

MB300 Universal Pressure Transmitter

MB300 Universal Pressure Transmitter
Features
Stainless steel construction; optional pressure port; Optional
Output signal; Various outline structures, accepting custom design;
Reversed-polarity, transient current & voltage protection, which
Conform to EMI standard;
High precision, anti-vibration;
Protection IP67;
Strong anti-interference ability, perfect long-term stability
Introduction
MB300 Universal Pressure Transmitter adopts piezoresistive pressure sensor with isolated stainless steel diaphragm as sensing element inside. The inlaying circuits transform millivolt signal into standard voltage, current and frequency signal. It can connect to computers and controlling instruments directly, and be chronically used in severe environment. MB300 provides a variety of pressure ranges and electrical interfaces, which has high anti-vibration and impact resistance.
Widely used in process control field of petroleum, chemical industry, pumps and compressors, general machinery, hydraulic/pneumatic systems, power, boiler, natural gas etc.

Pressure Type

Gauge pressure, Absolute pressure, Sealed gauge

Measuring Medium

Liquid ,gas, vapor ,which are compatible with SUS304

Pressure range(MPa)

-0.1 1 1.6 6 10 20 40 60 or customized

Pressure range (bar)

-1 10 16 60 100 200 400 600 or customized

Pressure range (psi)

-14.5 300 700 900 2k 4k 8k or customized

Overload range

200%FS

Bursting pressure

300%FS

Power Supply

(9～36）VDC, (9～36）VDC, (9～36）VDC

Output signal

(0～5)V, (1～5)V, (4～20)mA

Transmitting

2-wires, 3-wires, 3-wires,

Load

≤(U-15)/0.02Ω， ＞100k, ＞100k

Vibration

10～500Hz 25g

Shock resistance

50g 11ms

Accuracy

±0.5%FS(typ.) @25℃

Zero temp.drift

±0.03%FS/℃

FS temp.drift

±0.03%FS/℃

Long-term stability

±0.2%FS/Y

Insulation resistance

250 MΩ/250V, 100MΩ/250V

Medium temp.

(-40～125)℃

Ambient temp.

(-40～85)℃

Storage temp.

(-40～125)℃

Compensated temp.

(-10～80)℃

Housing

SUS304

Diaphragm

SS316L

O-ring

Viton

Protection

IP67
For more details, u can contact me by email or skype ( sennie33 )
Welcome to Nanjing Gaohua Technology Co.,ltd !
We are a leading Sensors manufacturer in China for more than 20 years.
Our main products:
Pressure sensor/transmitter/transducer, Automotive/Medical/Industrial pressure sensor, Temperature transmitter, Level sensor, Linear position sensor, Mine-use/Ship-use sensor
If u have any need for Sensors, u can contact me (Sennie) freely.
Contact: senniehs@govagroup.com / senniehs@163.com ( Sennie He )
Website: www.njgaohua.com
Hope we can help u !
High quality, Low cost, Fast delivery, Best service
Localisation : No.2 Shenma Road, Maqun Science Park, Nanjing, Jiangsu Province, China, 210049 Nanjing,
Personne à contacter : Sennie He, 025 85300032
