MB400 Industrial Pressure Transmitter 0~60Mpa

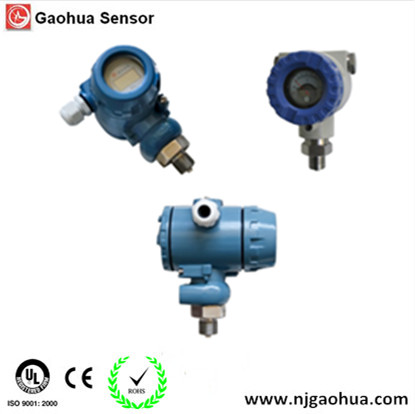

MB400 Industrial Pressure Transmitter
Features
■ LCD and LED indicator optional;
■ Reverse signal polarity, moment overcurrent, overvoltage
and Interference protection;
■ Anti- lightning, Anti- jamming;
■ Optional signal output;
■ Customized design is acceptable.
Introduction
MB400 Industrial Pressure Transmitter adopts piezoresistive OEM all-welded pressure sensor as a sensing element and the amplifier circuit transforms sensor signal into standard output signal. Through long-term aging and stability testing, its performance is stable and reliable.
Widely used in process control field of petroleum, chemical industry, metallurgy, engineering machinery, hydraulic/pneumatic systems, power, boiler, automatic checkout system, shipping, railway transportation, natural gas etc.
Specification
Pressure Type |
Gauge pressure, Absolute pressure, Sealed gauge pressure. |
Medium |
Liquid ,gas, vapor ,which are compatible with SUS304 |
Pressure range(MPa) |
-0.1 1 1.6 6 10 20 40 60 or customized |
Pressure range (bar) |
-1 10 16 60 100 200 400 600 or customized |
Pressure range (psi) |
-14.5 300 700 900 2k 4k 8k or customized |
Overload range |
200%FS |
Bursting pressure |
300%FS |
Power Supply |
(9~36)VDC |
Output signal |
(0~5)V, (1~5)V, (4~20)mA |
Transmitting |
2-wires, 3-wires, 3-wires, |
Load |
≤(U-15)/0.02Ω, >100k, >100k |
Vibration |
10~500Hz 25g |
Shock resistance |
50g 11ms |
Accuracy |
±0.5%FS |
Zero temp.drift |
±0.03% FS/℃ |
FS temp.drift |
±0.03% FS/℃ |
Long-term stability |
±0.2%FS/Y |
Insulation resistance |
250 MΩ/250V |
Medium temp. |
(-40~125)℃ |
Operation temp. |
(-40~80) ℃ |
Storage temp. |
(-40~125) ℃ |
Compensated temp. |
(-10~70)℃ |
Housing |
SUS304 |
Diaphragm |
SS316L |
O-ring |
Viton |
Protection |
IP67 |
For more details, u can contact me by email or skype ( sennie33 )
Welcome to Nanjing Gaohua Technology Co.,ltd !
We are a leading Sensors manufacturer in China for more than 20 years.
Our main products:
Pressure sensor/transmitter/transducer, Automotive/Medical/Industrial pressure sensor, Temperature transmitter, Level sensor, Linear position sensor, Mine-use/Ship-use sensor
If u have any need for Sensors, u can contact me (Sennie) freely.
Contact: senniehs@govagroup.com / senniehs@163.com ( Sennie He )
Website: www.njgaohua.com
Hope we can help u !
High quality, Low cost, Fast delivery, Best service
