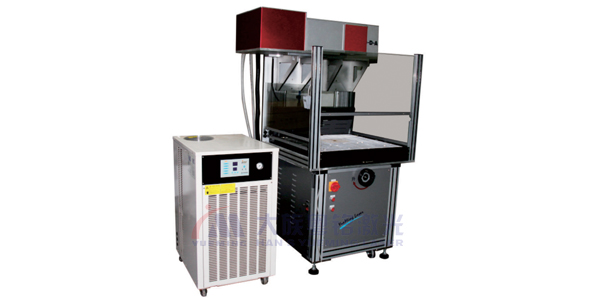

MC100-D-A Triaxial dynamic laser marking machine

MC100-D-A Triaxial dynamic laser marking machine

MC100-D-A(MC150-D-A) is an economical style large format triaxial dynamic laser marking machine, and it's the updated version of DDB series developed by Han's Yueming. YMHQY2015

Technical indicators:

Laser peak power: 100W (optional 150W)

Marking scope: 600 * 600mm

Minimum line width: 0.35mm

Minimum characters: 2mm

Marking line speed: 0 ~ 7000mm

Total power: 6kw

Host Dimension: 1664X1240X1779mm

Environment : 0-40 ℃ Humidity ≤ 80%, non-condensing

Features:

1. Whole aluminum frame and compact design results small footprint and high space utilization.

2. It equips original imported laser generator with good light spot, uniform density and stable output optical power. 100W and 150W can be choused. Performance triaxial dynamic marking system has good stability.

3.Reflector path transmission system of famous brand has characteristics such as high-speed, stable, good light beam and tiny light decline.

4. Industrial-grade precision temperature control cooling water chiller for laser machine ensures stable output laser power and long life time.

5. Optical bench can be adjusted manually, process size from 400mm*400mm to 600mmX600mm can be satisfied.

6. Great enclosed type and hydromechanics design keeps human body away from laser radiation. And the dust can be cleared effectively. Environmental and safety is really achieved.

7. SmartScanner, self developed professional control system, is easy to operate, resource saving and fast data processing. Graphics made by drawing software such as AutoCAD and CorelDraw can be imported With fast processing speed and high processing efficiency.

Applications:

Applicable materials: leather, rubber, wood, bamboo products, glass, tile, plastic, marble, jade, crystal, cloth and other non-metallic materials.

Samples:
