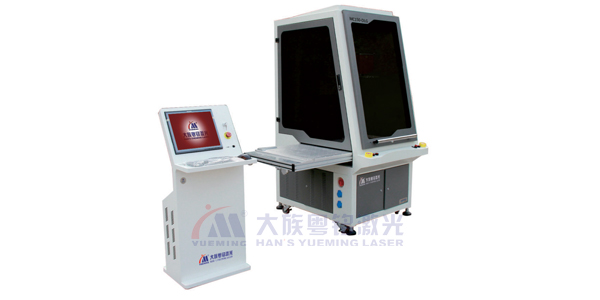

MC150-D Triaxial dynamic laser marking machine

MC150-D Triaxial dynamic laser marking machine

MC150-D laser dotting machine is environmental radiation protection equipment newly developed by Han's Yueming. Equipped with original imported laser generator, performance triaxial dynamic focusing system, and powerful point design software. Strong stability and high working speed contributes this machine. ymhqy2015

Technical indicators:

Laser power: 150W/275W/390W

Laser wavelength: 10.64μm

Laser frequency 1 ~ 130KHZ

Effective working area 1200X600mm

Voltage: AC220V ± 10%

Working speed: 7000MM / s

Laser Cooling: water cooling

Weight: 650KG/720KG/810KG

Host size: 1550mmX1370mmX2100mm

Working environment: clean, no dust or dirt less

Operating temperature: 10 ~ 35 (° C)

Humidity: ≤ 80% (non-condensing)

Features:

1. Brand new radiation protection design withacrylic cover and safety sliding doors makes it not only easy to be observed but also efficiently to prevent radiation. Enclosed upper&lower suction and dustproof system, keeps the lens and processing environment away from pollution.

2. Electric lifting platform with scaleplate and LED digital display makes it faster and more accurate to set focus length.

3. German made CO2 laser generator, with automatic focusing triaxial dynamic marking head of world's leading technology, makes it reach 600mmX600mm at one time maximum processing area.

4. The optional work platform satisfies different users from different industries. Large-format seamless processing is achievable by using mobile workbench, and the maximum processing area would be 1200mm*600mm.

Applied Materials:

Leather, cloth, wood, bamboo products, plastics, rubber, acrylic, marble, crystal, jade, metal surface oxide layer

By Industry

Clothing, leather goods, gifts, packaging, advertising, light guide and other industries.
