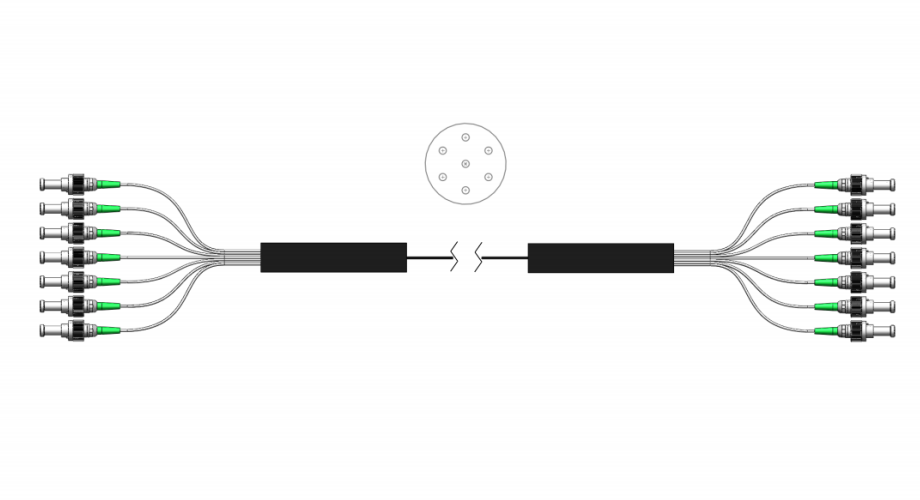

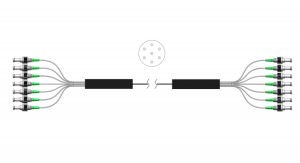

MCF Multicore Fiber Fanout

Multicore Fiber Fanout, or the so-called MCF Fiber, is a special optical fiber with multiple cores in one cladding. At present, the application of multi-core optical fiber is gradually becoming more and more widespread. It is normally used to connect with the traditional single-core fiber system. MEISU's multi-core fiber fan out cable can make the multi-core optical fiber be processed and be compatible with regular fiber system.

Multicore Fiber Fanout MCF Features

MCF fiber is increasingly for applications, from 3D shape sensing to space division multiplexing. Multicore fiber fanout are typically shipped in spliced pairs. Here are the features of MCF Fanout:

Number of cores: 4, 7, 8

Insertion Loss<1.5dB</span>

High data rates

Package Dimensions 4x7x60mm

Scalable manufacturing technique

How Multicore Fiber Fanout Works

Current optical communication network grows in a ratio of 20% to 60%, but single core fiber system has many limitations. Thus, breaking through the communication system capacity limit, Multicore Fiber Fanout gradually becomes the inevitable choice in the industry. Multi-core fiber (MCF) has multiple fiber cores in a common cladding area. Its fiber density can be increased by many times. To connect a single core fiber into a multi-core fiber, MCF fiber fanout service is needed. Multi-core fiber fan-out cable is designed to guide light from a 4/7/8 core fiber into 4/7/8 separate SMF28 fiber pigtail.

As a custom optical assemblies company, we can offer sorts of related products for sale, anything you need, please contact us.

If you want to know more types of multimode fiber optic switch, please visit our website.

Localisation : 4th Floor, No.132 North Qi-wan road, Zhongshan, Guangdong, China, 528400 Qi-wan road,
Personne à contacter : Li Holly , 86 760 88338926
