Mechanical Buzzer HE-208
Mechanical Buzzer ,Electromechanical Buzzer HE-208
Buzzer Datasheet: HE-208 PDF Datasheet Download
Lead wire type
Internal Driven Mechanical Buzzer (With oscillator circuit)
22x 16x 16mm ,Worked with 1.5~12V DC,Output 400 Hz 85dB at 10cm
|
Type |
HE208-1 |
HE208-3 |
HE208-6 |
HE208-12 |
|
Rated Voltage (V) |
1.5 |
3 |
6 |
12 |
|
Operating Voltage (V) |
1.2~3 |
2~4 |
4~8 |
9~15 |
|
Rated Current (MA) |
< 30 |
|||
|
Sound Output at10cm(dB) |
> 85 |
|||
|
Resonant Frequency (Hz) |
400 ±100 |
|||
|
Tone Nature |
Continuous |
|||
|
Operating Temperature (C) |
25~+70 |
|||
|
Storage Temperature (C) |
-30~+80 |
|||
|
Weight (g) |
8.5 |
|||
Value applying at rated voltage

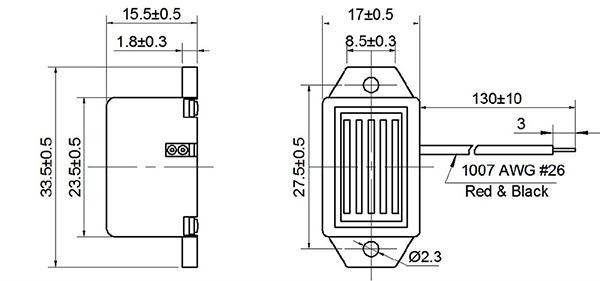

DIMENSIONS Unit: mm Tolerance: ±0.5
