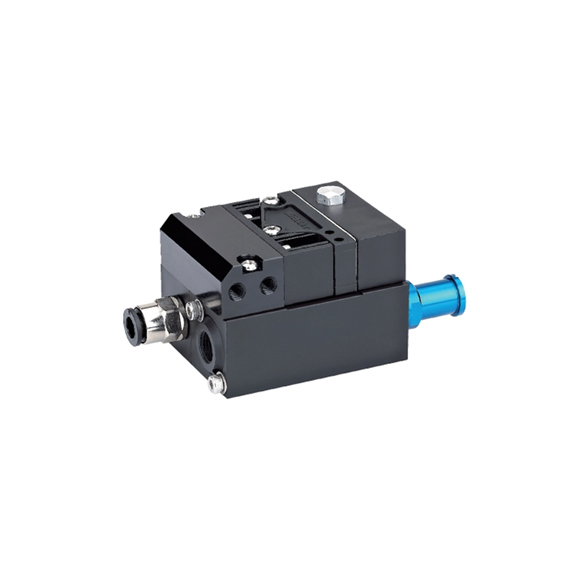

MECHANICAL ENERGY-SAVING VACUUM GENERATOR
AGE Series
Energy-saving function is realized by the generator itself, electric control is not required
Strong anti-pollution ability
Energy-saving function, it can help customers to minimize the cost
Two-stage generator, the AIRBEST vacuum level can reach -92kPa quickly
GLASS For Mechanical Energy-saving Vacuum GeneratorMETA SHEET(Thick Metal Plate) For Mechanical Energy-saving Vacuum Generator
FEATURES
MECHANICAL ENERGY-SAVING VACUUM GENERATOR
Mechanical energy saving mode, the inline vacuum ejector itself automatically saves energy after the vacuum level reaches the set value, and then the air supply stops
Optional energy saving function can save up to 99% of the air consumption
Can adapt to a variety of working conditions, can work in dust and water environment
Internal blow valve allows rapid release of the workpiece and maintains vacuum in sealed applications in the event of system or power failure
An internal filter is equipped to protect the device from dust and particles
SELECTION GUIDE
AGE SERIES BASIC VACUUM GENERATOR
AGE - ES
① ②
① Series |
② Control device |
AGE |
Nil- Default, without control device |
ES- Energy-saving system |
Technical parameters
Model |
Rated air supply pressure |
Max. vacuum level |
Max. vacuum flow |
Noise level |
Weight |
AGE |
5 |
92 |
41 |
68.5 |
177 |
AGE-ES |
5 |
92 |
41 |
68.5 |
258 |
SPECIFIC
MECHANICAL ENERGY-SAVING VACUUM GENERATOR
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model |
Air supply pressure bar |
Air consumption NL/min |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
Max. vacuum level -kPa |
AGE |
5.0 |
29 |
42.1 |
31.3 |
23.8 |
15.8 |
10.4 |
8.4 |
6.0 |
3.6 |
1.3 |
0 |
92 |
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model |
Air supply pressure bar |
Air consumption NL/min |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
Max. vacuum level -kPa |
AGE |
5.0 |
29 |
0.14 |
0.28 |
0.47 |
0.79 |
10.4 |
2.59 |
4.09 |
6.68 |
22.32 |
92 |
DIMENSIONS
MECHANICAL ENERGY-SAVING VACUUM GENERATOR
AIR CIRCUIT SCHEMATIC DIAGRAM
MECHANICAL ENERGY-SAVING VACUUM GENERATOR
AIRBEST pays attention to the practical application of products, quality orientation and innovation first. So far we acquired many patents. We have several robots in our lab to simulate customers' real applications to get the good solution.
