Medical scissors blister card packing machine

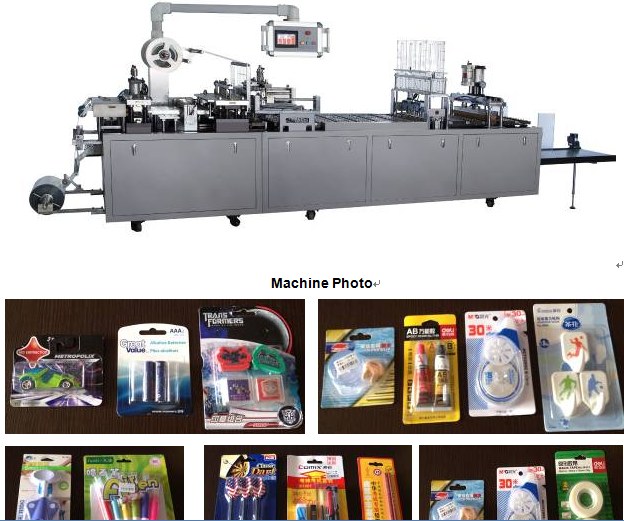

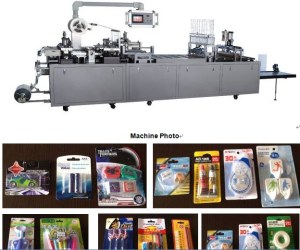

MEK7500 Automatic Blister Card Packing Machine

1.Machine overview

MEK7500 series blister card packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.

2.Machine application

This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark plug, lip stick, hook, shaver, pencil etc.

3.Main features

A. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.

B. 304 stainless steel frame, beautiful appearance, convenient for cleaning.

C. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.

D. Photoelectrical control, auto detection.

E. Separated card feeder, which will reduce the labor force.

F. The whole machine is separately designed, it is convenient to delivery with lift.

G. To design the mould and auto feeding method according to the product shape.

4. Main technical parameters

Cutting frequency(times/min)

12-25times/min

Maximum travel range

40-200mm

Maximum forming area

480×200mm

Standard forming depth

40mm( can be customized)

Air pressure

0.5-0.8Mpa

Air flow

≥0.5m3/min

Total power

380V 50Hz 11.8KW

Overall dimension

5800×1050×1850mm(L×W×H)

Machine weight

2100kg

Localisation : No.880, Tong'an road, Laoshan district, Qingdao city, China, 266000 qingdao,
Personne à contacter : samerry liu, +86 532 68720031
