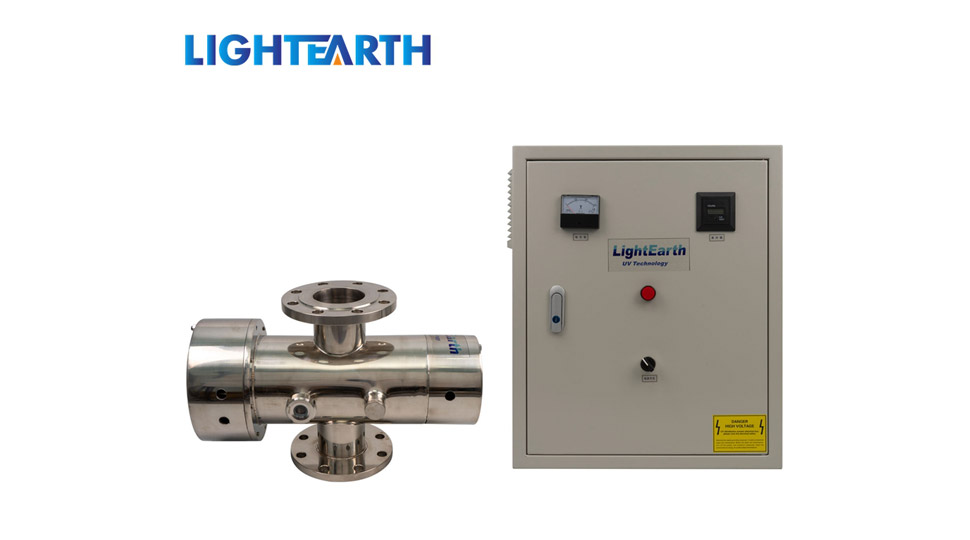

Medium Pressure UV Water Sterilizer
Ultraviolet UV Rays is the most safe water disinfection method
Ultraviolet germicidal light is the use of ultraviolet radiation to destruct the DNA and RNA of bacteria or virus. The ultraviolet radiation (UVC) can cause irreversible destruction of microbial DNA molecules, which cause microorganisms fail to reproduce and eventually die.
Compared with residual chlorine (Chloramines), UVC is more healthy, and none side-effects.
Features of Medium Pressure uv light water sterilizer
- It contains the Reactor, cleaning system and an electric box.
- With MPUV, its effective wavelength range covers 200nm~400nm.
- With less UV lamps, you can get the same purification effect. All maintenance operation is conducted at the same side.
- Combined a number of technical innovations, it saves the operation cost while keeps the high efficiency. Its electronic ballasts are adjustable for output. With spiral cleaning appliances.
- With PCL controller, combine diversified monitor functions, such as lamp inspection, running time accumulation, UV intensity monitoring, cleaning system operating, remote communication, etc.
- Material and Surface Process
- Body: 304 stainless steel in general ( 316L available), with surface polishing.
- Electric box: Q235 carbon steel; the surface is plastic-spayed for resistance.
- The service life of LIGHTEARTH ultraviolet lamp is up to 5000 hours, and the sterilization rate is 99.99%
- Ge214 material high transmittance quartz casing, transmittance 90%
- Beasun high quality stable ballast
- SUS304 / 316L stainless steel reactor
- Equipped with high temperature protection, automatic exhaust and water flow protection switch
- Automatic cleaning and manual cleaning devices can be selected
- PLC touch screen can be selected for online light intensity detection
- Pressure bearing capacity of equipment: 0.8MPa
Specification of Medium Pressure uv water disinfection
|
TYPE |
RATE FLOW |
UV LAMP |
TOTAL POWER |
VOLTAGE |
Water inlet and outlet |
SHELL SIZE(L*W*H) |
|
|
T/H |
POWER(W) |
QUANTITY(PCS) |
|||||
|
LSMPUV-1KW-1 |
30T/H |
1.0KW |
1 |
1.0KW |
220V |
DN100 |
450L*280W*360H |
|
LSMPUV-2KW-1 |
50T/H |
2.0KW |
1 |
2.0KW |
380V |
DN125 |
525L*280W*380H |
|
LSMPUV-3KW-1 |
100T/H |
3.0KW |
1 |
3.0KW |
380V |
DN150 |
620L*350W*450H |
|
LSMPUV-2KW-2 |
200T/H |
2.0KW |
2 |
4.0KW |
380V |
DN200 |
525L*350W*450H |
|
LSMPUV-3KW-2 |
350T/H |
3.0KW |
2 |
6.0KW |
380V |
DN250 |
620L*500W*550H |
|
LSMPUV-3KW-3 |
450T/H |
3.0KW |
3 |
9.0KW |
380V |
DN300 |
650L*620W*625H |
|
LSMPUV-3KW-4 |
600T/H |
3.0KW |
4 |
12.0KW |
380V |
DN350 |
700L*620W*655H |
|
LSMPUV-3KW-5 |
850T/H |
3.0KW |
5 |
15.0KW |
380V |
DN400 |
700L*620W*755H |
If you want to buy stainless steel uv sterilizer or germicidal lamp China, contact us.
