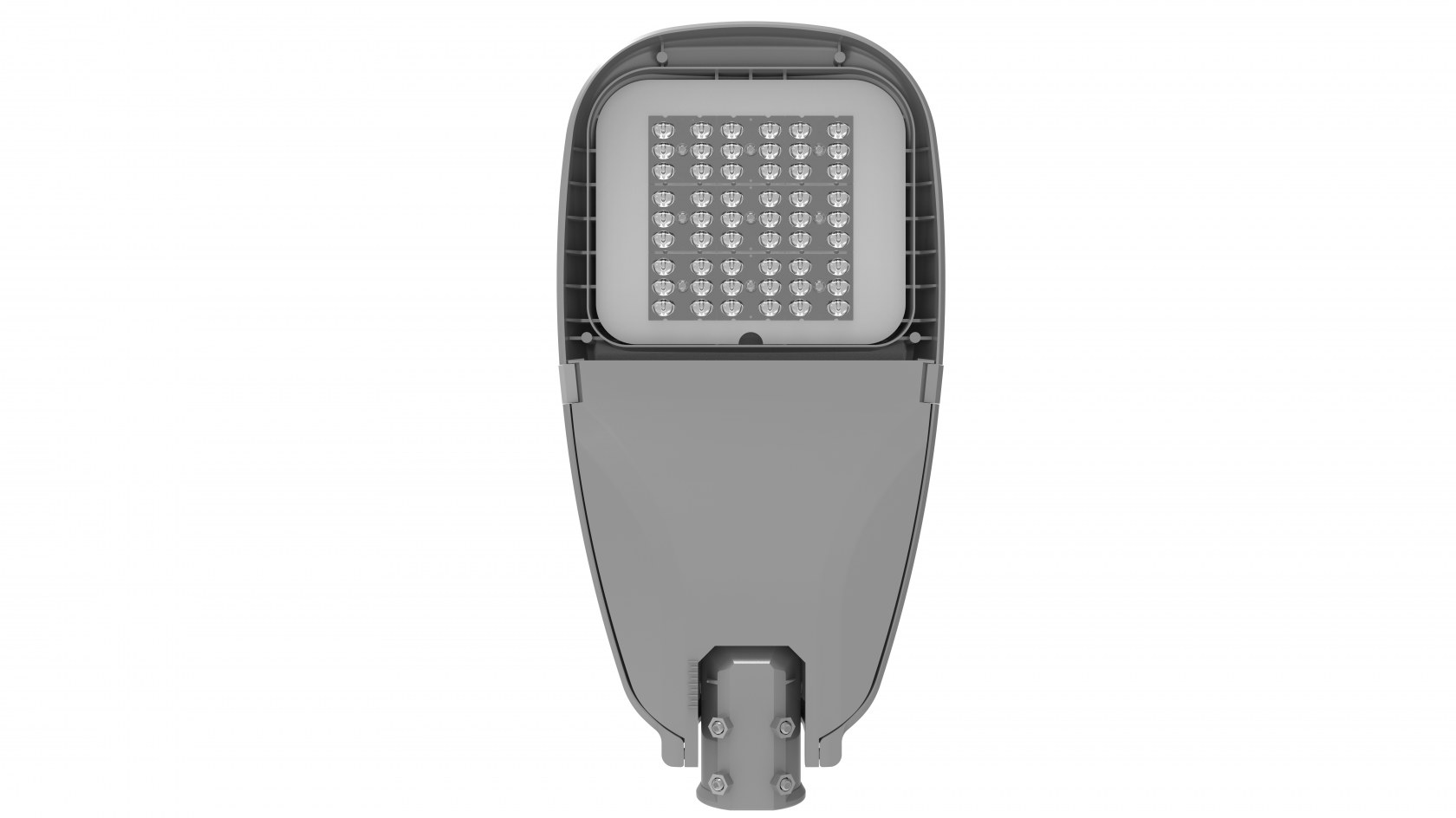

Melo Series LED Street Light
Melo Series LED Street Light
Light Source: CREE/Lumileds/Osram/Samsung
Driver: Philips/Meanwell/Inventronics/Moso
Power range: 30W/40W/50W/60W/80W/100W/120W/150W/180W/200W/240W
Voltage: 90-305Vac/347-480Vac
Size: Micro/Mini/Midi/Max
Weight: 3.4kg/5.3kg/8.3kg/11.2kg
CCT: 3000K/4000K/5000K
Optical : Type II/Type III/Type IV/Type V
Efficacy: 140lm/W standard, 170lm/W optional
CRI: Ra>80
IP Rating: IP66
IK Rating: IK09
Spigot size: 25mm-76mm
Adjustable: 0-90°
Temperature: -20℃ to +55℃
Warranty: 5Years
Smart control: 0-10v dim, photo sensor, motion sensor, smart city control system
Built with extensive strong aluminum casting materials and reliable components, Melo low profile street light has been defined as a high performance and cost effective luminaire. The unique thermal design enables passive heat dissipation to accomodate different range of power consumption. Easy and tool-less access to driver compartment brings more convenience of maintenance service.
Applications
- Designed for city road, highway, alley, walkway, park, garden and country road.
Installation
- Side-entry and post-top mounting optional with ±15° tilt steps per 5°.
Housing & Finishing
- Die-cast a luminum housing with internally installed heat sink for optimum thermal performance and long lifespan.
- Corrosion resistant polyester powder coating.
- Standard color: Silver Gray.
- Customization color available.
LED & Optical System
- Utilizes high brightness LEDs, minimum CRI 80 at 4000k typically(3000k and 5000k optional).
- LM-79/TM-21 test reports in accordance with IESNA standards.
- With asymmetrical wide beam angle distributions(Type Ⅱ, Type Ⅲ and Type Ⅳ) are available for customer specific lighting tasks.
- Optic lens: polycarbonate, UV resistant.
- High light efficiency: 160lm/W
Electrical
- Aluminum core printed circuit board.
- 220-240 Vac , 120-277 Vac, And 347-480Vac optional.
- 1-10V dimming default and DALI dimming optional.
- Multi-level surge protections designs, up to 10KV surge protection(20KV is optional).
Ratings
- CE, CB, RoHS, ENEC, IP66, IK09,TM-21,TM-79
