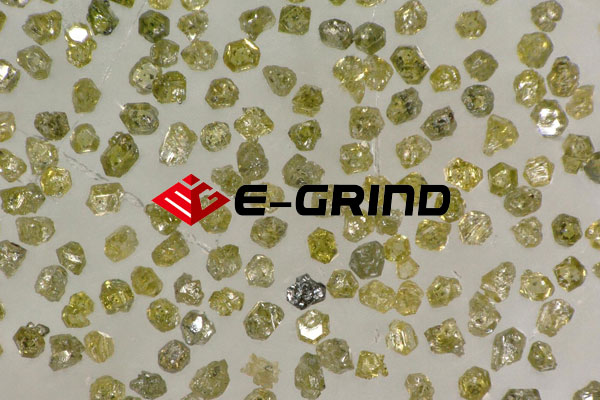

Metal Bond Mesh Diamond

E-Grind's metal bond mesh diamond combines both using life and working efficiency.

Suitable for resin bond, vitrified bond, metal bond, and electroplated bond system.

Application: glass, PCD/PCBN, dental tools, gemstone

Metal Bond Mesh Diamond: EA-M19

Medium toughness, Irregular shape,

new cutting edges always occur during the grinding process. The texture surface offers good bond combining ability.

For resin bond and Vitrified bond system

Available Sizes: 60/70 through 500/600

It is also available in Ni coating

Metal Bond Mesh Diamond: EA-M20

Medium Toughness, Rough and Irregular crystal,

Similar to EA-M19, but more durable.

For resin bond and Vitrified bond system

Available sizes: 80/100 through 500/600

It is also available in Ni coating

Metal Bond Mesh Diamond: EA-M35

Medium-High Toughness, Angular shape.

Excellent free cutting ability and more durable than EA-M40.

For resin bond and Vitrified bond system

Available sizes: 30/40 through 120/140.

It is also available in Ni coating

Metal Bond Diamonds: EA-M40

Medium toughness, Angle crystal, Friable.

Excellent free cutting ability.

For Resin bond, Electroplated and Vitrified bond system.

Available Sizes: 30/40 through 500/600

It is also available in Ni coating

Metal Bond Mesh Diamond: EA-M45

High Toughness, Semi-blocky

It combines the long using life and high working efficiency.

For Resin Bond system, Vitrified bond system, Electroplated tools.

Available Sizes: 40/50 through 500/600

It is also available in Ni coating and Ti coating.

Metal Mesh Bond Diamond: EA-M50

High Toughness, Blocky

Durable provides the shining surface on the workpiece.

For Resin Bond system, Vitrified bond system, Electroplated tools.

Available Sizes: 40/50 through 500/600

It is also available in Ni coating and Ti coating.

Henan E-Grind Abrasives Powder Suppliers. was founded in 2009. However, we have more than 50 years of experience in the superabrasives industry. Focusing on the researching and exporting of diamonds and CBN, E-Grind is rapidly developing since establishment. Besides grit business, E-Grind develops solid products: PCD, PCBN, PDC, TSP, CVD diamonds etc. To meet the different needs of customers, E-Grind provides the premium and the most cost-effective products. Your satisfaction is our first goal.
