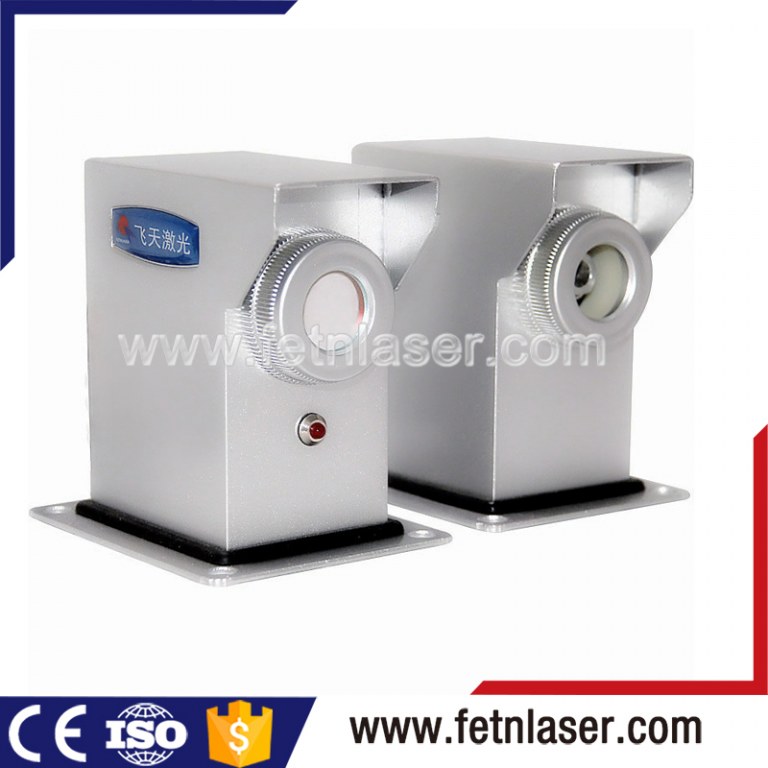

Metal shell photo sensor price
|
Item |
Technical indexes |
|
Model |
XD-A30/50/100/200/300/500S |
|
Laser wave length |
650nm、808nm、980nm |
|
Alert distance |
0~500m |
|
Alert level |
Single-layer alert |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% |
|
Working current: |
≤30mA when transmitting,≤35mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: :AC125V/0.5A、DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle: < <3′Receiving angle: :>10°</p> |
|
Optical axis adjustment angle |
Horizontal±30° Vertical±30°(range adjustable.)) |
|
Product dimension |
60mm(L)×80mm(W)×115mm(H) |
|
Chassis dimension |
90mm(L)×110mm(W)×2mm(H) |
|
Material |
Aluminum alloy |
|
Product weight |
1.4KG(transmitting end:0.75KG,receiving end: :0.65KG) |
|
Dimension of installation hole |
4个∮8holes in even distribution |
|
Alarm time |
2s±1s(1-30soptional) |
|
Response time |
5ms-500ms(adjustable) |
|
Working environment temperature |
-40℃~70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
>120000h |
