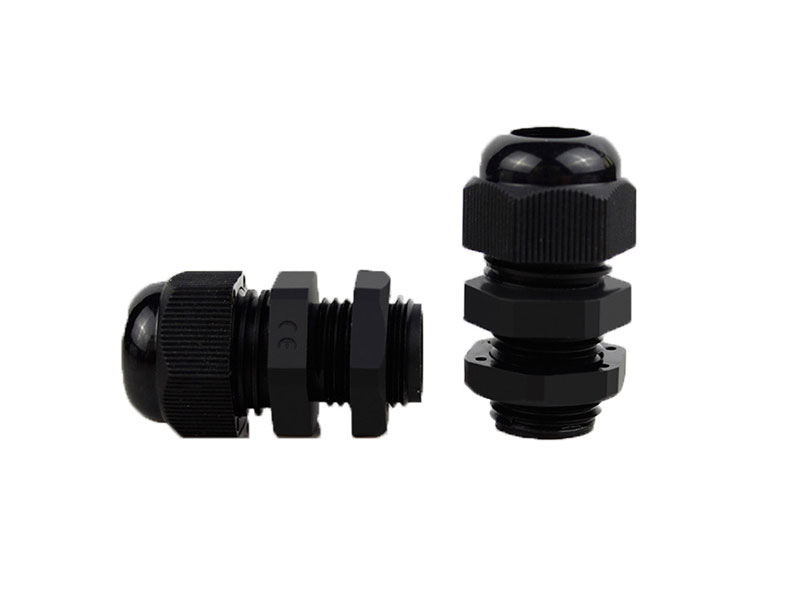

Metric Cable Gland Long Thread

Product

METRIC PLASTIC CABLE GLAND LONG THREAD

Category

Plastic Cable Gland

Thread

METRIC Thread

Connector Type

Installable Straight

Locking System/ Mating Style

Screw

Material

Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR).

Working termperature:

-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.

Characteristics

Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent.

IP Rating

IPX7

Standard

UL94 V2

Additional Description

With washer and lock nut

Color

Gray, black cable glands are usually in stock . Other colors can be customized on request

Model

Thread Size

Cable Range (mm)

Thread OD L2(mm)

Thread Length L1 (mm)

Spanner Size A & E (mm)

Qty/bag

M12-L

M12xl.5

3 ~ 6.5

12

15

18/16

100

M12-L

M12xl,5

2-5

12

15

18/16

100

M16-L

M16xl.5

4 ~ 8

16

15

22/19

100

M16-L

M16x 1.5

2 ~ 6

16

15

22/19

100

M18-L

M18xl.5

5 ~ 10

18

15

24/22

100

M18-L

M18xl,5

3 ~ 7

18

15

24/22

100

M20-L

M20xl.5

6-11

20

15

27/24

100

M20-L

M20xl.5

5 ~ 9

20

15

27/24

100

M22-L

M22xl.5

10 ~ 13

22

15

30/27

100

M22-L

M22xl.5

7-12

22

15

30/27

100

M24-L

M24xl.5

12 ~ 15

24

15

30/28

100

M24-L

M24xl.5

10 ~ 12

24

15

30/28

100

M25-L

M25xl.5

12 ~ 15

25

15

31/28

100

M25-L

M25xl.5

10 ~ 12

25

15

31/28

100

M27-L

M27xl.5

13 ~ 18

27

15

35/33

100

M27-L

M27xl.5

9 ~ 16

27

15

35/33

100

M28-L

M28xl.5

13 ~ 18

28

15

35/33

100

M28-L

M28xl,5

9 ~ 16

28

15

35/33

100

M30-L

M30xl.5

16 ~ 21

30

15

37/35

50

M30-L

M30xl.5

13 ~ 18

30

15

37/35

50

M32-L

M32xl.5

16 ~ 21

32

15

38/35

50

M32-L

M32xl,5

13 ~ 18

32

15

38/35

50

M36-L

M36xl.5

18 ~ 25

36

15

45/42

50

M36-L

M36xl.5

13 ~ 20

36

15

45/42

50

M40-L

M40xl.5

22 ~ 32

40

18

52/52

20

M40-L

M40xl.5

20 ~ 26

40

18

52/52

20

M46-L

M46xl.5

22 ~ 32

46

18

58/52

20

M46-L

M46xl,5

20 ~ 26

46

18

58/52

20

M50-L

M50xl.5

32 ~ 38

50

20

62/58

20

M50-L

M50xl.5

25 ~ 31

50

20

62/58

20

M58-L

M58xl.5

37-44

58

20

70/64

20

M58-L

M58xl.5

29 ~ 35

58

20

70/64

20

M63-L

M63xl.5

37-44

63

20

72/64

20

M63-L

M63xl.5

29 ~ 35

63

20

72/64

20
