Metric Cable Gland Long Thread
Quantité : 130000 pcs Prix : $0.02~$0.40 per piec
The thread length of the extended cable gland is 15-20mm, which is suitable for relatively thick distribution boxes or electrical panels. It is made of PA66 material and can be waterproof and dustproof.
Metric Plastic cable gland long thread
Metric gland Specifications
|
Product |
METRIC PLASTIC CABLE GLAND LONG THREAD |
|
Category |
Plastic Cable Gland |
|
Thread |
METRIC Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of UL approved nylon PA66, the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Standard |
UL94 V2 |
|
Additional Description |
With washer and lock nut |
|
Color |
Gray, black cable glands are usually in stock . Other colors can be customized on request |

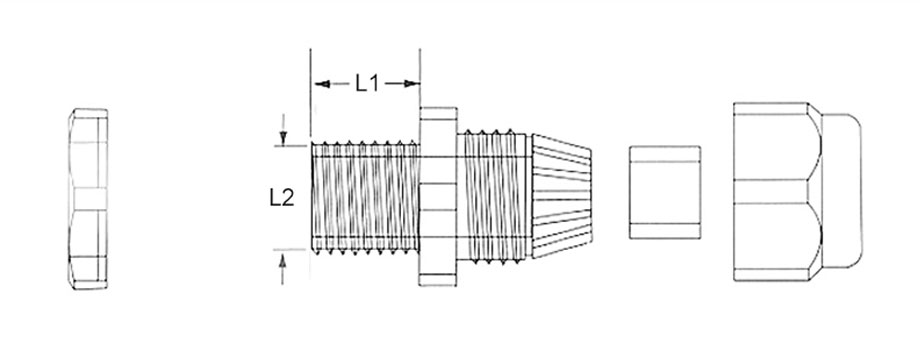

Metric Plastic Cable Gland Size Chart and Drawings
|
Model |
Thread Size |
Cable Range (mm) |
Thread OD L2(mm) |
Thread Length L1 (mm) |
Spanner Size A & E (mm) |
Qty/bag |
|
M12-L |
M12xl.5 |
3 ~ 6.5 |
12 |
15 |
18/16 |
100 |
|
M12-L |
M12xl,5 |
2-5 |
12 |
15 |
18/16 |
100 |
|
M16-L |
M16xl.5 |
4 ~ 8 |
16 |
15 |
22/19 |
100 |
|
M16-L |
M16x 1.5 |
2 ~ 6 |
16 |
15 |
22/19 |
100 |
|
M18-L |
M18xl.5 |
5 ~ 10 |
18 |
15 |
24/22 |
100 |
|
M18-L |
M18xl,5 |
3 ~ 7 |
18 |
15 |
24/22 |
100 |
|
M20-L |
M20xl.5 |
6-11 |
20 |
15 |
27/24 |
100 |
|
M20-L |
M20xl.5 |
5 ~ 9 |
20 |
15 |
27/24 |
100 |
|
M22-L |
M22xl.5 |
10 ~ 13 |
22 |
15 |
30/27 |
100 |
|
M22-L |
M22xl.5 |
7-12 |
22 |
15 |
30/27 |
100 |
|
M24-L |
M24xl.5 |
12 ~ 15 |
24 |
15 |
30/28 |
100 |
|
M24-L |
M24xl.5 |
10 ~ 12 |
24 |
15 |
30/28 |
100 |
|
M25-L |
M25xl.5 |
12 ~ 15 |
25 |
15 |
31/28 |
100 |
|
M25-L |
M25xl.5 |
10 ~ 12 |
25 |
15 |
31/28 |
100 |
|
M27-L |
M27xl.5 |
13 ~ 18 |
27 |
15 |
35/33 |
100 |
|
M27-L |
M27xl.5 |
9 ~ 16 |
27 |
15 |
35/33 |
100 |
|
M28-L |
M28xl.5 |
13 ~ 18 |
28 |
15 |
35/33 |
100 |
|
M28-L |
M28xl,5 |
9 ~ 16 |
28 |
15 |
35/33 |
100 |
|
M30-L |
M30xl.5 |
16 ~ 21 |
30 |
15 |
37/35 |
50 |
|
M30-L |
M30xl.5 |
13 ~ 18 |
30 |
15 |
37/35 |
50 |
|
M32-L |
M32xl.5 |
16 ~ 21 |
32 |
15 |
38/35 |
50 |
|
M32-L |
M32xl,5 |
13 ~ 18 |
32 |
15 |
38/35 |
50 |
|
M36-L |
M36xl.5 |
18 ~ 25 |
36 |
15 |
45/42 |
50 |
|
M36-L |
M36xl.5 |
13 ~ 20 |
36 |
15 |
45/42 |
50 |
|
M40-L |
M40xl.5 |
22 ~ 32 |
40 |
18 |
52/52 |
20 |
|
M40-L |
M40xl.5 |
20 ~ 26 |
40 |
18 |
52/52 |
20 |
|
M46-L |
M46xl.5 |
22 ~ 32 |
46 |
18 |
58/52 |
20 |
|
M46-L |
M46xl,5 |
20 ~ 26 |
46 |
18 |
58/52 |
20 |
|
M50-L |
M50xl.5 |
32 ~ 38 |
50 |
20 |
62/58 |
20 |
|
M50-L |
M50xl.5 |
25 ~ 31 |
50 |
20 |
62/58 |
20 |
|
M58-L |
M58xl.5 |
37-44 |
58 |
20 |
70/64 |
20 |
|
M58-L |
M58xl.5 |
29 ~ 35 |
58 |
20 |
70/64 |
20 |
|
M63-L |
M63xl.5 |
37-44 |
63 |
20 |
72/64 |
20 |
|
M63-L |
M63xl.5 |
29 ~ 35 |
63 |
20 |
72/64 |
20 |
Metric Cable Gland Long Thread Details
Body Of Long Thread M20 Cable Gland
This long-thread cable gland is made of PA material. The surface is shiny,smooth and it has high toughness, strong pressure resistance, anti-aging, firm surface and long service life.
Lock Nut Of Metric Thread Cable Gland Long Thread Saichuang
The lock nuts are strictly manufactured. The surface is neat and smooth, no burrs, and the threads are neat and clear, which ensures the tightness and fixability of the cable gland.
Plastic Waterproof Cable Gland Metric Long Thread Saichuange Supply
The thread length of the extended cable gland is longer than that of the conventional type, so that it can be installed on a thicker panel.
Sealing Nut Of Metric Long Thread Cable Gland Saichuang
The thread of the waterproof cable gland is clear, the sealing nut is strong and waterproof, and the insulation effect is good.
SAICHUANG is one of professional cable gland manufacturers. We provide Cable Gland, Zip Ties, metric strain relief connectors, Cable Tie Holder, strain relief connector and so on. Want to know more? Please contact us.
