MEWOI1500-Wireless High Voltage Current Transformation Ratio Tester

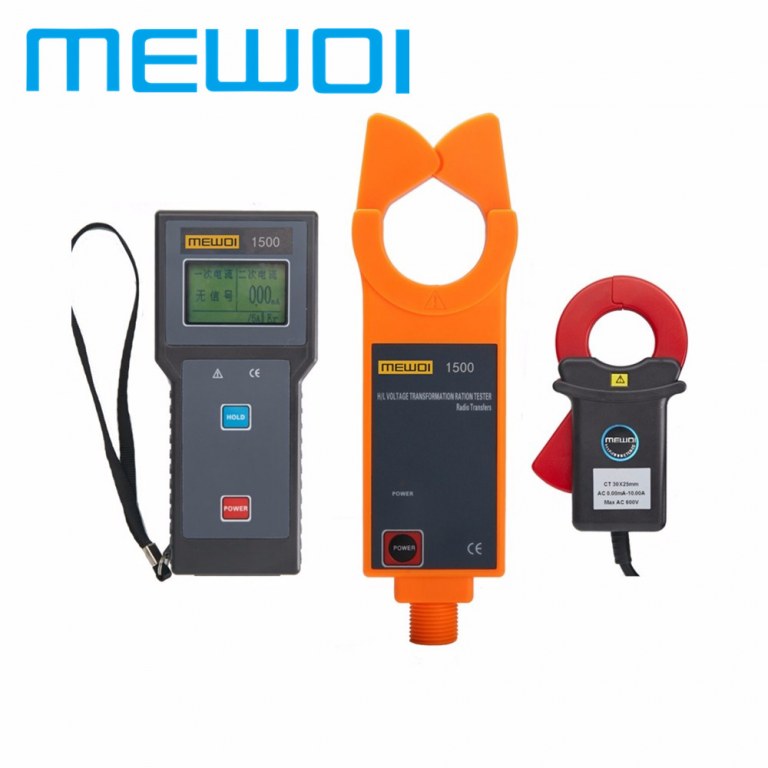

MEWOI1500 Wireless High Voltage Current Transformation Ratio Tester breaks traditional structure, specially designed for high and low voltage first and secondary loop current, variable ratio, and current leakage test; apply the latest CT technology and mask digital integration technology, composed of special high-voltage clamp, low voltage clamp, host, high voltage insulation rod and monitoring software, etc; its wireless transmission test data can penetrate multiple building obstacles with a straight-line distance of 30 meters.

With monitoring software, the meter has online real-time monitoring and historical query function, with dynamic display, wave direction, variable ratio, frequency indication, with maximum, minimum, mean value indication; alarm setting and alarm indication functions, functions of historical data reading, access, saving, analysis, processing, sorting, fitting curve, report and printing.

High-voltage detector connected rod can be used in the measurement of high voltage line current, currents on both sides of transformer, variable ratio test, online current monitoring below 60KV; The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing, power audit and field working.

High voltage clamp: 0.1mA～1000A

Low voltage clamp: 0.01mA～10A

High voltage clamp: φ48mm

Low voltage clamp: φ30mm

Model No.

Product Name

AC Range

Definition

Clamp Size

Other

MEWOI1000

H/L Voltage Clamp Meter

AC 0.0mA～

1000A

0.0mA Automatic

Shift

φ48mm

MEWOI1000C

Wireless H/L Voltage Clamp Meter

wireless（Distance: 30M）

MEWOI1000T

Portable H/L Voltage Clamp Meter

MEWOI1100

H/L Voltage Clamp Current Meter

AC 0.00mA～600A

0.01mA

φ33mm

MEWOI1100C

Wireless H/L Voltage Clamp Current Meter

wireless（Distance: 30M）

MEWOI1100T

Portable H/L Voltage Clamp Current Meter

MEWOI1200

H/L Voltage Clamp Current Meter

AC 0.00mA～1000A

0.01mA

φ68mm

MEWOI1200C

Wireless H/L Voltage Clamp Current Meter

wireless（Distance: 30M）
