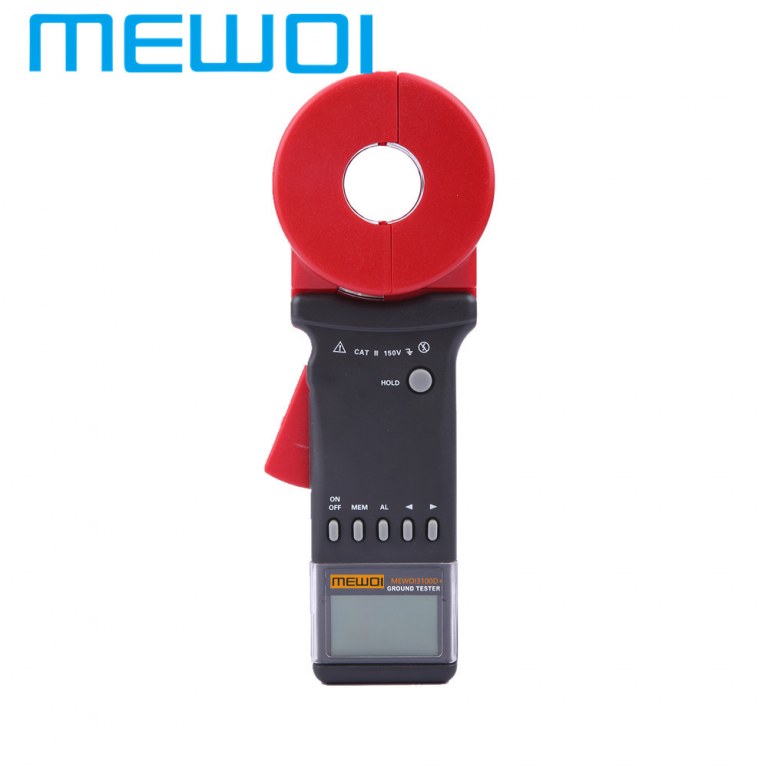

MEWOI3100D+-Clamp earth resistance tester 0.01Ω-1200Ω 0.00mA-20.0A
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

MEWOI3100D+-Clamp earth resistance tester 0.01Ω-1200Ω 0.00mA-20.0A

Quantité : 1set   Prix : 431.95USD

altalt
altaltalt

INTRODUCTION

MEWOI3100D+ Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster. MEWOI3100D+ Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable; MEWOI3100D+ Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead. What's more, MEWOI3100D+ Series tester can measure the leakage current of ground wire.

APPLICAITON


Why earth resistance can be found by only clamping it?

Rx, is defined as earth resistance under test, and R1, R2... Rn are defined as earth resistance of other measuring objects.

alt

These earth resistances, R1, R2, Rn can be considered that they are connected in parallel.
And they can be regarded as a combined resistance Rs. The Rs can be regarded small enough against Rx since a combined resistance consists of several resistances. Following is an equivalent circuit diagram of this circuit.

alt

Voltage V is applied to the object (Resistance Rx) measured from the voltage injection transformer CT1, and the current I corresponding to the earth resistance is flowed.
The current I is detected with detection transformer CT2, and object (Resistance Rx) measured can be put out by the calculation. (refer to the right diagram)

alt

SELECTION GUIDE

Digital Earth Resistance Clamp Meter

Click "blue"marked model No. for detailed Specificaiton

Model Range Resolution clamp size RS232 Data Storge Audible and visible alarm Other
MEWOI3000B+MEWOI3000B+_副本.jpg 0.01Ω-200Ω 0.01Ω 65mm×32mm optional 99sets √
MEWOI3100B+MEWOI3100B+官网主图_副本_副本.jpg ø32mm
MEWOI3000+MEWOI3000B+_副本.jpg 0.01Ω-1200Ω 0.01Ω 65mm×32mm optional 99sets √
MEWOI3100+MEWOI3100B+官网主图_副本_副本.jpg ø32mm

0.01Ω-1200Ω

0.00-20.00A

0.01Ω,0.05mA 65mm×32mm optional 99sets √
MEWOI3100D+MEWOI3100B+官网主图_副本_副本.jpg ø32mm
MEWOI3800CMEWOI3800C_副本80.jpg 0.01Ω-200Ω 0.01Ω 60mm*30mm Appoint with RS485 communication interface, provide standard MODBUS-RTU communication protocol ×
MEWOI3800DMEWOI3800D_副本80.jpg 0.01Ω-200Ω 0.01Ω 60mm*30mm × LCD display,warning function.

0.01Ω～2000Ω;

0～600V

 0.01Ω,1V √ 400sets 2/3-wires measurement of earth resistance/voltage

earth resistance: 0.01Ω～30.00KΩ;

soil resistivity: 0.01Ωm～9000KΩm;

0～600V

 0.01Ω,0.01Ωm,1V √ 300sets 2/3/4-wires measurement of earth resistance,soil resistivity,and earth voltage

earth resistance: 0.01Ω～30.00KΩ;AC Leakage current: 0.00mA~600A;

soil resistivity: 0.01Ωm～9000KΩm;Earth Voltage: 0.0~100.0V,dual clamp: 0.01Ω-100Ω

 0.01Ω,0.01Ωm,0.01A,0.1V ø68mm √ 2000sets 2/3/4-wires,selection & dual clamp method to measure the earth resistance,soil resistivity,earth voltage,AC voltage,AC leakage current,warning function.
