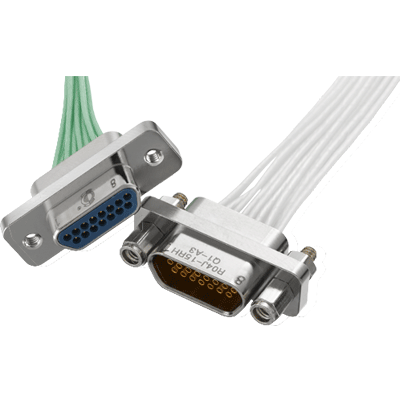

Micro Crimp Connectors
Quantité : Output cap
Description:
An electrical crimp is a type of solder less electrical connection. Crimp connectors are typically used to terminate stranded wire. Crimping is normally performed by first inserting the terminal into the crimp tool. The terminal must be placed into the appropriately sized crimp barrel. Crimp-on connectors are attached by inserting the stripped end of a stranded wire into a portion of the connector, which is then mechanically deformed/compressed (crimped) tightly around the wire. Sunkye Micro crimp connectors matching with standards MIl-DTL-83513 and accept standard jackscrews and jackpots, making it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.
Performance of Micro Crimp Connectors
Contact Pitch * 0.050˝ (1.27 mm)
TEMPERATURE RANGES *
- STANDARD -55°C / +150°C
- HIGH TEMP -55°C / +200°C
Vibration * 10Hz-2000Hz, 196m/s2
Contact arrangements of Micro Crimp Connectors
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
Introduction of Micro Crimp Connectors
Series * Micro D Connector
Terminal Mounting * Crimping Cable Assembly
Contacts *Twist pin contacts, high density interconnection, Becu, gold over nickel plating
Thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as socket).
Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated nickel or cadmium.
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with jackscrew.
Cable * AFR250 (PTFE) MIL-DTL-681
Wire length * ≤6 meters (Recommend)
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom made connector * Designed to meet specific customer requirements.
Pigtail connector * Connector with insulated or uninsulated wires.
Harness * Multi-branched cable assembly.
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant.
Personne à contacter : Wang Gloria , +85 2 69 48 67 97
