Micro CW,CCW,FREE rotation AC gear motor with 2.5-3RPM for electric fan and oven
Product Application

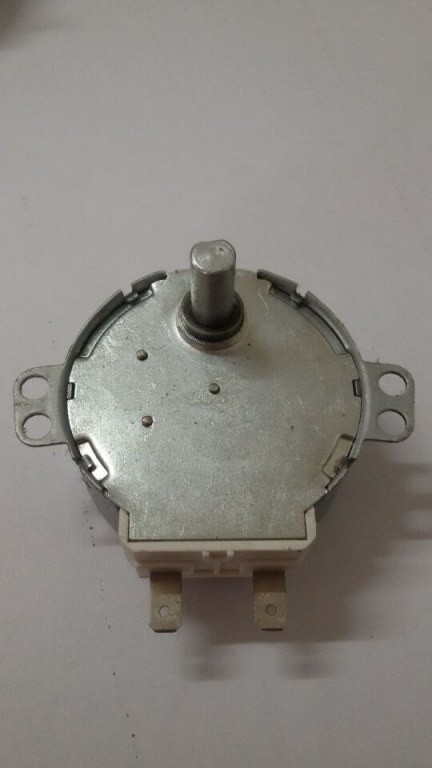

Synchronous AC Motor TH-50
Synchronous AC Motor TH-50
Specifications:
Rated Voltage: 12,24,100,110~120,200~240VAC
Power Frequency: 50/60Hz
Input Power: Â 4W
Number of Poles: 8-16P
Rotor Speed: 500 / 600RPM
RPM: 1-60RPM
Stall Torque: 500gm-cm ~ 20Kg-cm
Rotation: CW, CCW, Free
Operation Temperation: -10degrees celsius ~ 60degrees celsius
Insulation Strength: AC 1500V-1Min
Insulation Class: F Class
Lead Wire: 1007/1015 x AWG22 x 200mm
Application:
Household electrical appliances / box fans / air-conditioning /
cooling fan / heating machine / microwave oven / a plastic
machine/ stage lights / Christmas tree Wheel / automatic
controller /jewelry toy
Quick Details
| Brand Name: |
TAKCHUAN
|
Model Number: |
SGTH-50
|
Type: |
Synchronous Motor
|
| Frequency: |
50/60hz
|
Output Power: |
4w
|
Protect Feature: |
Totally Enclosed
|
| Phase: |
Single-phase
|
Certification: |
CE, ROHS, UL
|
AC Voltage: |
110V
|
| Place of Origin: |
China (Mainland)
|
Efficiency: |
IE 4
|
Motor type: |
Synchronous AC Motor
|
| Voltage: |
12~240v
|
coloe: |
grey
|
feture: |
small size
|
| Protection class: |
A,B
|
Keyword: |
electric Synchronous AC Motor
|
Application: |
Household electrical appliances
|
