MICRO-NANO FIBER FABRIC

Nanofiber filter media is composed of nano scale diameter fibers. Small size effect gives nano fibers excellent properties and finer diameter. With smaller pore size and higher porosity, it can be widely used in many applications. Mingguan Micro-nano fiber fabric is combined nanofiber and synthetic micron scale fibers by our unique technology to provide excellent filtration performance.

We also provides nanofiber products for more applications, such as liquid filtration, textile, biomedical and etc. Please contact us if you need more product information.

Features of Micro-nanofiber filter fabric

1

H11-U16 wide efficiency range of products can be provided to meet specific requirements;

2

Lower pressure drop for energy saving and noise control;

3

Excellent dust holding capacity and durability;

4

Flexible raw material choice to achieve excellent performance.

Specifications of Micro-nanofiber filter sheet

Type

Area Weight
(g/m²)

Thickness
(mm)

Initial Efficiency*
(%)

Pressure Drop*
(Pa)

Max. Width
(mm)

Material

SNF-NH11

65 ± 10

0.55 ± 0.05

≥98

≤55

1500

PP+PAN/PU/PVDF/PES

SNF-NH12

65 ± 10

0.55 ± 0.05

≥99.9

≤85

SNF-NH13

70 ± 10

0.58 ± 0.05

≥99.97

≤150

SNF-NH14

75 ± 10

0.62 ± 0.05

≥99.995

≤210

SNF-NU15

75 ± 10

0.62 ± 0.05

≥99.999

≤230

* Testing condition0.3μm NaCl @5.3cm/s
Please contact Mingguan for more product types which not listed in this table.

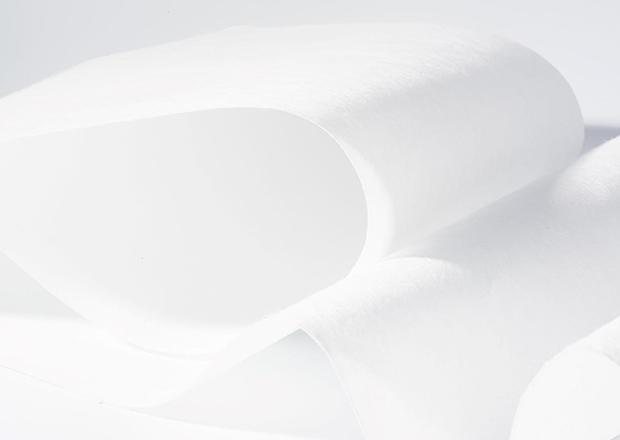

Micro- nanofiber filter material Gallery

Mechanical filtration with low pressure drop than traditional filter media, such as PTFE and fiberglass media at the same efficiency level.

For more information about filter fabric and filter felt material, please feel free to contact us!
