Micro PCB Connectors

Description：

A "PCB" or Printed Circuit Board connects electrical components on a conductive track or between pads on the board. Some devices hold more than one PCB and will utilise a variety of equipment to build a connection between the boards. Designed to connect printed circuit boards in a variety of settings, PCB connectors securely transmit signal and power between boards.

Performance of Micro PCB Connectors

Contact Pitch * 0.050˝ (1.27 mm)

TEMPERATURE RANGES *

- STANDARD -55°C / +150°C

- HIGH TEMP -55°C / +200°C

Random vibration * Power spectrum density 0.4G2/Hz root mean square value of total acceleration 23.1G

Shock: 735m/s2

Contact arrangements of Micro PCB Connectors

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro PCB Connectors

Series * Micro D Connector

Terminal Mounting * PCB Type Including Straight to PCB and 90°angle to PCB type

PCB Tail Length * Standard 3mm

PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm

Contacts *Twist pin contacts, high density interconnection, Becu, gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant.

Standard connector * Manufactured to the standard dimensions and specifications.

Special connector * A standard connector modified to meet specific requirements.

Custom made connector * Designed to meet specific customer requirements.

PCB connector * widely apply for the different industry and application.

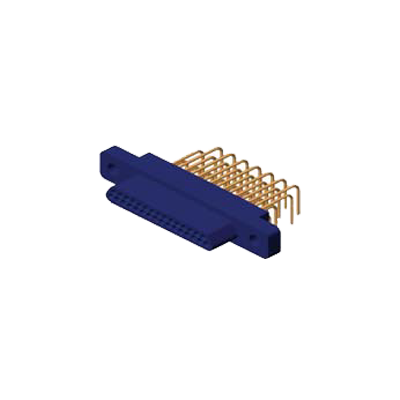

Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector.

Straight PCB connector * Board Straight connector.

As a specialist in advanced mil spec connectors automotive, Sunkye has extensive experience in micro-miniature and nano miniature solutions based on the highly reliable Twist Pin contact technology. If you want to know more details or want a quotation , just feel free to contact us!
