MICRO RIGHT ANGLE PCB CONNECTOR D-SUB TYPE

MICRO RIGHT ANGLE PCB CONNECTOR D-SUB TYPE

The right angle pin connector features gold-plated BeCu Twist Pin contacts for best performance. Sunkye Micro d sub connector pcb mount connector matches with MIL-DTL-83513 standard and accept standard jackscrews and jackpots, available in metal shell version. It is also environmentally sealed.

Micro Right Angle PCB Connector D-sub Type for Choice

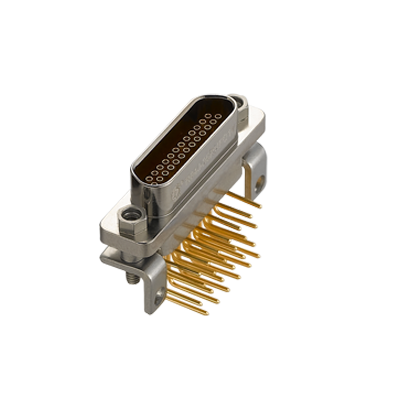

Sunkye R04A Mil Spec Right Angle To PCB Connector

Sunkye R04J MIL-DTL-83513 Micro D-Sub Right Angel to PCB Connectors

Description of Micro Right Angle PCB Connector D-sub Type

Right angle D-sub connectors are type of MIL-DTL 83513 Micro-D connectors that are bulky and durable, which made them suitable for being applied in harsh environments where durability is extremely important. PCB D sub connectors can also be compatible with many old-fashioned devices. For these advantages, right angle D-sub connector is widely used in factories, manufacturing workshops and industrial environments.

Micro right angle d sub pcb connector db9 female is most frequently used connector for flexible and rigid printed circuit boards. Several tail lengths available makes it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc. PCB right angle connector is a kind of mil spec D sub connector, which is specially applied to connect and fix printed circuit boards. The right angle d sub connector usually adopts pin-in type and has super-strong clamping force of FPC cable.

Performance of Micro D-sub Right Angle PCB Connector

Contact Pitch * 0.050˝ (1.27 mm)

TEMPERATURE RANGES *

- STANDARD -55°C / +125°C

Contact arrangements of Micro D-sub Right Angle PCB Connector

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro D-sub Right Angle PCB Connector

Series * Micro D Connector

Terminal Mounting * D-sub PCB Type 90°angle to PCB type (also known as right angle to PCB type)

PCB Tail Length * Standard & special custom length

PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant.

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

Standard PCB right angle connector* Manufactured to the standard dimensions and specifications.

Special PCB right angle connector* A standard connector modified to meet specific requirements.

Custom-made PCB right angle connector* Designed to meet specific customer requirements.

D-sub PCB connector * widely apply for the different industry and application.

D-sub Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector.

D-sub Straight PCB connector * Board Straight connector.
