Mini Brewery Equipment
Electric/Steam/ Direct Flame Heating Machine 15bbl Brewery Equipment Brewing Equipment
Beer Brewing Equipment Manufacturer. Whole Production Line Can Be Supplied.
Welcome To Visit us At Any Time.
Company Information
♦ One of biggest factory in Jinan city;
♦♦ Can supply CE certificate;
♦♦♦ Supply 30L/Batch---30,000L/Batch turnkey brewing system;
♦♦♦♦ Supply turnkey bottle filling system;
♦♦♦♦♦ Tell us how much do you need everyday. We offer you detailed specification, price, drawing and layout.
♦♦♦♦♦♦ We send engineer to install system and brew for you.
♦♦♦♦♦♦♦ Trade assurance is available.

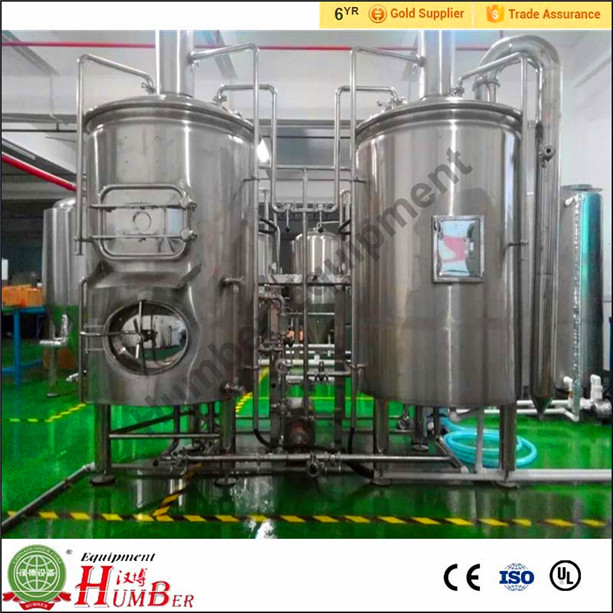

Complete System
System introduction
| Grinding System | Main equipment | Malt mill; screw feeder, grain hoppers, grist hydrator |
| Working capacity | 80-800Kg/h | |
| Function | Malt mill breaks grains, make it easier for sugar to separate out when saccharify | |
| Mashing System | Main equipment | Mashing tun, lauter tun, kettle and whirlpool tank |
| Optional | Cold liquid tank (CLT), hot liquid tank (HLT), Boiler | |
| Capacity | 30L--30000L per batch | |
| Heating way | Steam heating, electric heating, direct fire heating | |
| Material | SUS304, thickness: 2.0-4.0mm | |
| Insulation | Polyurethane/Rock wool, thickness: 80mm | |
| Polishing precision | Ra0.4um | |
| Accessories | Pump, pipeline, heat exchanger, valve, raker, platform, and all other accessaries | |
| Function | Separate all sugar from grains and solve sugar in water. Also solve hops in water. Then separate grains and impurities from water. Finally get pure wort | |
| Fermentation system | Main equipment | Several fermentation tanks. Quantity is decided by you |
| Capacity | 30L--30000L per tank | |
| Material | SUS304, thickness: 2.0-4.0mm | |
| Insulation | Polyurethane/Rock wool, thickness: 80mm | |
| Polishing precision | Ra0.4um | |
| Cooling way | Ice water belt cooling | |
| Cone bottom | 60° resist compression design | |
| Sampling method | 1 piece of aseptic sampling valve | |
| Fermentation tank pressure | Design pressure 0.3MPa; Working pressure 0.15Mpa | |
| Accessories | Pump, pipeline, yeast adding tank, valve, and all other accessaries | |
| Function | Yeast has aerobic respiration and anaerobic respiration in fermentation tank. Turn sugar into CO2 and . Finally we get original | |
| Refrigeration System | Main equipment | Ice water tank, chiller |
| Capacity | 90L--90000L per tank | |
| Chiller | Compressor is USA copeland | |
| Material | SUS304, thickness: 2.0-4.0mm | |
| Insulation | Polyurethane/Rock wool, thickness: 80mm | |
| Polishing precision | Ra0.4um | |
| Cooling media | Glycol water or water | |
| Accessories | Pump, pipeline, valve, and all other accessaries | |
| Function | Cool down wort when fermentation tank temperature is high. Control fermentation carries on under appropriate temperature. Sometime, ice water is also used to cold down hot wort before wort goes into fermentation tank | |
| CIP system | Main equipment | NaOH tank, H2O2 tank |
| Function | Clean all tanks before brewing or finish brewing. Use NaOH to clean firstly, secondly is H2O2, finally is water. Then begin to brew | |
| Control System | Main equipment | Button control box or PLC control box |
| Function: Control all the pump and motor. Control mashing system and CIP system manually, control fermentation tank temperature automatically. | ||
| Others | Can also supply auto filling system, capping system, filtering system, water treatment system, pasteurizer and so on. | |
Why Choose US?
1. Professional manufacturer. Design specifically for you.3D & CAD drawing can be offered.
2. Products are 100% tested.
3. Engineer & training available.
4. 30 days delivery time.
5. 5 years warranty.
6. 7*24 hours service.
7. L/C is available.
8. CE/UL/ISO certificate is available.
