Mini Peristaltic Pump
Quantité : 500000 Pie Prix : $0.2 - $1500

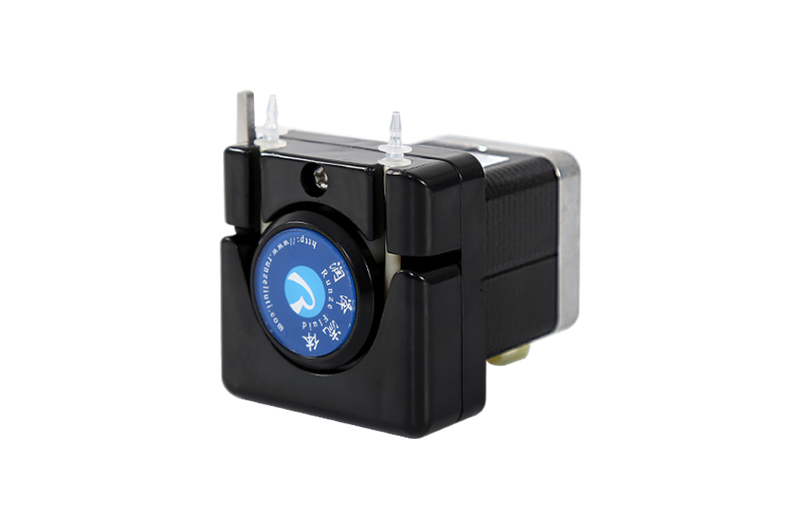

Mini peristaltic pump BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.
Specification of Mini Peristaltic Pump
|
Model No. |
BJ-RZ1030-4 |
|
Pump Roller |
POM 4 rollers (low pulse) |
|
Pump Head Material |
ABS engineering plastic |
|
Motor type |
NMB 1.8° 42 stepper motor |
|
Input voltage |
24V DC |
|
Rated Current |
1.1A |
|
Rated Power |
26.4W |
|
Motor Speed |
0-400rpm |
|
Flow Range |
0-170ml/min |
|
Tubing Size |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
|
Tubing Life |
Silicone≥200H BPT Rubber≥1000H Viton≥1000H |
|
Pressure Rating |
Up to 2 bar（30psi） |
|
Working Environment |
0-40℃, ≤80％ non-condensing |
|
Max DB |
70db |
|
Suction |
About 5 meters |
|
Head |
About 8 meters |
|
Dimension (L*W*H) |
57*57*73.5mm |
|
Net Weight |
450g |
Fitting Peristaltic Tubing of Mini Peristaltic Pump
Flow Rate for Reference of Mini Peristaltic Pump
|
Tubing Type |
Tube Size (ID*WT: mm) |
Speed Range (rpm) |
Flow Range (ml/min) |
|
BPT Rubber Tube |
0.64*0.8 |
0-400 |
0-13 |
|
1.14*0.8 |
0-33 |
||
|
1.52*0.8 |
0-59 |
||
|
2.06*0.8 |
0-102 |
||
|
2.54*0.8 |
0-128 |
||
|
2.79*0.8 |
0-147 |
||
|
Silicone Tube |
1*1 |
0-26 |
|
|
2*1 |
0-106 |
||
|
3*1 |
0-170 |
* Flow rate measured by pumping pure water under room temperature and pressure, actual working flow rate maybe vary from different medium and working environment
Nanjing Runze Fluid Control Equipment Co., LTD. is a professional mini peristaltic pump suppliers, we provide Stepper Motor Peristaltic Pump, DC Motor Peristaltic Pump, Laboratory Peristaltic Pump, luer to tubing connector and etc. Want to know more? Please contact us.
Personne à contacter : Zhu Julie, 86 025 5119 7362
