Mini Peristaltic Pump

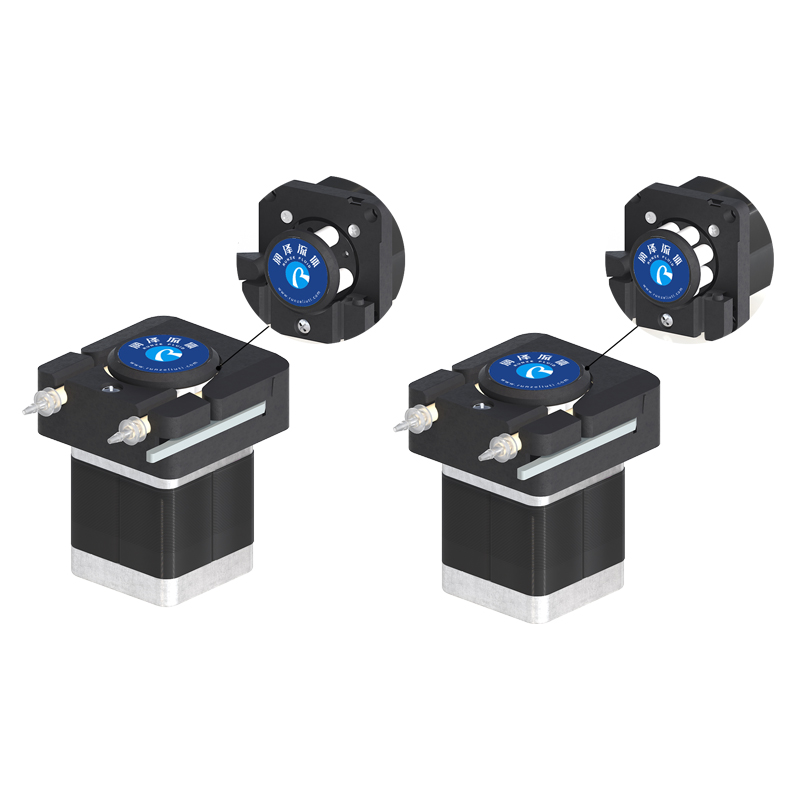

Small oem peristaltic pumps BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.

Specification of Mini Peristaltic Pump

Peristaltic Tubing for Mini Peristaltic Pump


Material

Features

Service Life

Mini Peristaltic Pump

Silicone

Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid

≥200h

Mini Peristaltic Pump

Pharmed BPT

Saint-Gobain, FDA standard Temp. range -51℃- +132℃ Anti weak acid and alkali

≥1000h

Mini Peristaltic Pump

Viton

MasterFlex, FDA Standard Temp. range -20℃- +260℃ Anti strong acid and alkali

≥1000h

1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing

3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer

Flow Rate for Reference of Small Peristaltic Pump

Note: Test under room temperatu re 20℃ and no external pressure (water), Flow rate may vary from different media, condition, pressure, humidity, temperature etc. The data for reference only.
