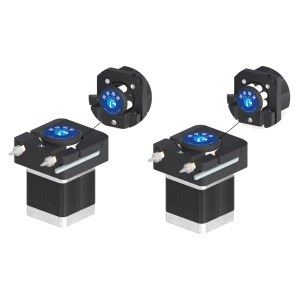

Mini Peristaltic Pump

Quantité : 500000 Pie   Prix : $0.2 - $1500

Small peristaltic pump BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.

Specification of Mini Peristaltic Pump

Model No.

BJ-RZ1030-4

BJ-RZ1030B

Pump Roller

POM 4 rollers (low pulse)

POM 4 / 8 rollers (low pulse)

Pump Head Material

ABS engineering plastic

PPS

Motor type

NMB 1.8° 42 stepper motor

NMB 1.8° 42 stepper motor

Input voltage

24V DC

24V DC

Rated Current

1.1A

1.1A

Max Power

9.2W

9.2W

Motor Speed

0-400rpm

0-400rpm

Flow Range

12.5-170ml/min

9-183ml/min

Tubing Size

ID0.64-3.0mm WT0.8-1.0mm OD≤5mm

ID0.64-3.0mm WT0.8-1.0mm OD≤5mm

Tubing Life

Silicone≥200H BPT Rubber≥1000H Viton≥1000H

Silicone≥200H BPT Rubber≥1000H Viton≥1000H

Pressure Rating

Up to 2 bar(30psi)

Up to 2 bar(30psi)

Working Environment

0-40℃, ≤80% non-condensing

0-40℃, ≤80% non-condensing

Max DB

70db

70db

Suction

About 5 meters

About 5 meters

Dimension (L*W*H)

57*57*63.5mm

57*57*72.4mm

Net Weight

424g

432g

Peristaltic Tubing for Mini Peristaltic Pumps


Material

Features

Service Life

Silicone

Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid

≥200h

Pharmed BPT

Saint-Gobain, FDA standard Temp. range -51℃- +132℃ Anti weak acid and alkali

≥1000h

Viton

MasterFlex, FDA Standard Temp. range -20℃- +260℃ Anti strong acid and alkali

≥1000h

1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks

2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing

3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer

Flow Rate for Reference of Small Peristaltic Pump

Model

Tubing

BPT Rubber Tube

Silicone Tube

RZ-1030-4

ID(mm)

0.8mm

1.0mm

WT(mm)

0.64

0.76

0.89

1.02

1.14

1.3

1.42

1.52

1.65

1.85

2.06

2.29

2.54

2.79

1.0

2.0

3.0

Max flow rate (ml/min)

12.5

17.3

22

28.2

33.4

42.5

51.9

59.4

72.2

89

101.9

112.6

137.6

146.9

26.1

105

170

RZ-1030B

ID(mm)

0.8mm

1.0mm

WT(mm)

0.64

0.76

0.89

1.02

1.14

1.3

1.42

1.52

1.65

1.85

2.06

2.29

2.54

2.79

1.0

2.0

3.0

4 rollers

Max flow rate (ml/min)

12

15

18

25

32

38

47

50

56

70

87

94

113

128

24

74

183

8 rollers

9

14

14

21

27

32

38

42

43

55

61

71

77

81

17

57

114

Note: Test under room temperatu re 20℃ and no external pressure (water), Flow rate may vary from different media, condition, pressure, humidity, temperature etc. The data for reference only.

Localisation : Room 201 3rd Building Runjing International, No.9 Tianxing West Road, Dongshan Street, Jiangning District, Nanjing, 211100 Nanjing,
Personne à contacter : Zhu Julie, 86 025 5119 7362
