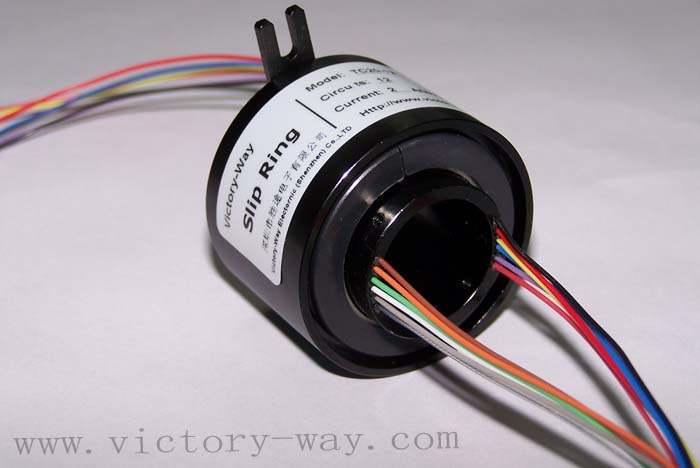

Mini through holes slip ring with 20mm through-bore in the center

TC20 series slip ring is a micro slip ring, of which there is a 20 mm through-bore in the center of the shaft. It has the advantages of capsule & through bores slip ring. This design features long life & low cost, and fiber Precious metal brush contact technology realizes ultimate performance in many challenging applications. With aluminum alloy body, double precision roller bearings provide smoother running, lower torque and lower electrical noise. It is suitable for transferring signal & low power.
A.Feature:
20mm through-bore, provid 1~12 ways;
Compact miniature design, small size,fit for harsh space;
Multi circuits/channels design can delivr both power & signal at the same time;
Hybrid FORJ or High Frequency rotary joints;
Aluminium alloy shaft and body for excellent shielding;
No need to maintain.

B.Specification:
Speed: 300 RPM
Voltage: 240 VAC/DC
Working Temp: -30 ℃～+80 ℃
Current: 2A/way
Dielectric Strength: 600 V DC @ 50Hz
Insulation Resistance: >=500 MΩ @ 600 V AC
Electrical Noise: less than 60 mΩ
Body material: Aluminium alloy

C.Typical Application:
Rotary tables, test equipment;
Robots, processing equipments and rotary sensors;
Exhibit / display equipment;
Medical equipment.

D.Option:
Higher voltage and current capacity;
Higher speed;
Wider range of temperature;
Higher protection class;
Style of exits for lead wires;
Flange for installation for option.
