Mini wood engraving machine
DESCRIPTION

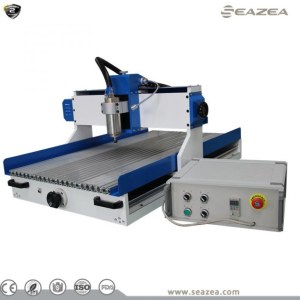

The SZ E1-Mini CNC Engraving Machine table top CNC router is a versatile machine, with it's compact design and high performance spindle it is capable of machining a vast range of materials and is used widely by engravers. Engraving nameplates, plaques, memorial signs, badges, electrical plates, directional signs etc is easy on the 0609 due to it's high powered spindle.
The 0609A comes complete with DSP hand held control allowing operation independently from a PC and an infinitely variable air cooled Maxicam spindle with Z zeroing sensor as standard.
STANDARD CONFIGURATION
●Working area: 600mm*900mm*120mm, PVC table ( with Aluminium profile)
●Drive System: High power stepper motors
●1.5 kw air cooled spindle
●T-slot PVC table (with Aluminium Profile)
●HIWIN linear rails
●DSP hand held controller system for stand alone operation. USB file transfer.
●Z zeroing Tool sensor
●One starter set of engraving tools
●Inverter:Taiwanese Delta Inverter
●Electronic Parts:German Schneider Electronic Spare Parts
●Switch gear:Japanese OMRON Switch
●Cable:Highly flexible towline-only Cable Imported fire-resistant double-sheathed, can be bent 300 000 times
●Igus cable chain
●Voltage: 1PH 220V 50HZ
●Package: plywood case
OPTIONAL ITEMS
●NC-Studio PC based Control System
●Italian HSD Spindle
●Oil Mist Cooling System for engraving non-ferrous metals
TECHNICAL PARAMETERS
| ITEM | SZ E1-6090A |
| Working area | 600*900*120mm |
| Table size | 890*1200mm |
| Transmission | Ball screw |
| Table structure | T-slot Extrusion PVC |
| Spindle power | 1.5KW |
| Spindle speed | 24000RPM |
| Speed | MAX travelling speed: 6000mm/min |
| MAX working speed: 5000mm/min | |
| Driver and motor | Stepper motor |
| Working voltage | AC 220V/1PH/50HZ |
| Operating system | DSP(Option: NC-studio) |
| Net weight | 115KGS |
| Gross weight | 200KGS |
SAMPLES
![]() |
![]() |
![]() |
| Metal | PVC | Wood |
