Miniature Peristaltic Pump
Quantité : 500000 Pie Prix : $0.2 - $1500

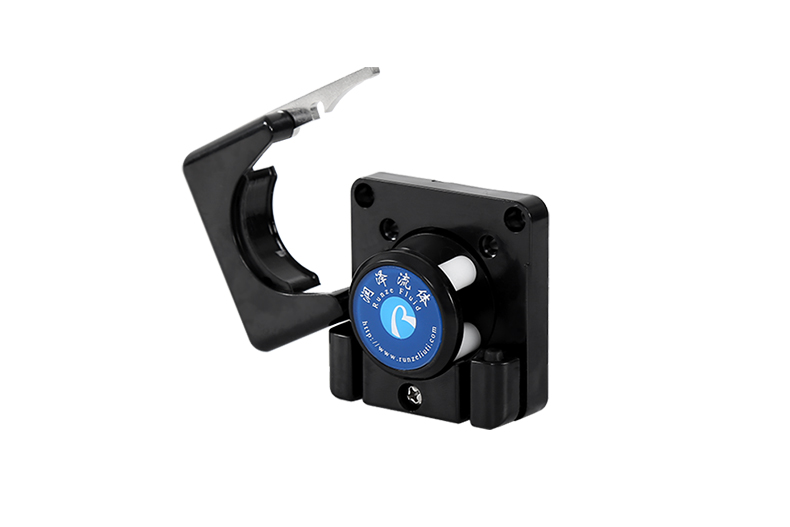

miniature peristaltic pump head is very high cost performance model for small flow rate applications, small layout, 4 rollers structure and easy tubing replacement make it very welcomed by medical and lab equipment, flexible block designs enable it self-adapt to different tube sizes in a wide range.
Specification of Miniature Peristaltic Pump
|
Model No. |
RZ1030-4 |
|
Pump Roller |
POM 4 rollers |
|
Pump Head |
ABS engineering plastic |
|
Fast Tubing |
YES |
|
Pump Color |
Black |
|
Compatible Motor |
Stepper motor/DC motor |
|
Motor Speed |
0-500rpm |
|
Flow Range |
0-170ml/min |
|
Tubing Size |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
|
Tubing Life |
Silicone≥200H BPT Rubber≥1000H |
|
Pressure Rating |
Up to 2 bar（30psi） |
|
Working Environment |
0-40℃, ＜80％ non-condensing |
|
Max DB |
65db |
|
Suction |
5 meters |
|
Head |
8 meters |
|
Dimension (L*W*H) |
57*65*23mm |
|
Net Weight |
58g |
Fitting Peristaltic Tubing of Miniature Peristaltic Pump
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing
3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer
Nanjing Runze Fluid Control Equipment Co., LTD. is a professional pump company, we provide Stepper Motor Peristaltic Pump, DC Motor Peristaltic Pump, Laboratory Peristaltic Pump and etc. Want to know the micro peristaltic pump price? Please contact us.
