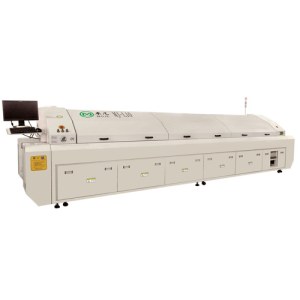

MJ-L10 Large Lead-Free Hot Air 10 Temperature Zones Reflow Oven, SMT Reflow Soldering...

Many temperature wave choice for you: Memory eight kinds of temperature parameter waves can be provided as choice, and establish to move to heat and cool off function compulsory; Whole soldering process to complete automatically, easy to use.

Special heat up and temperature equalization with all design: Adoption fast infrared radiation and circulation the wind for heat, so the temperature is very Accurate and even, Whole led reflow soldering process to complete automatically for you choice temperature parameter waves.

Humanized science and technology exquisite article: Firm of external appearance, can see of operation, amity of person-machine operation interface, the perfect temperature wave project, from start to eventually body science and technology now is original;

The agile physical volume and weight, let you economize a great deal of money, the set noodles type places mode, can let you own larger space; Simple operating instructions, let you a see can use. LED oven.

Specification

ITEMS

SPECIFICATIONS

Control system

PC+PLC

Heating/cooling

20 heating zone + 2 cooling zone

Heating zone length

3650mm

Temperature range

Room temperature-350℃

Temperature accuracy

±1-2℃

Three temperature

±2℃

Cooling

Forced cooling (Nitrogen gas input style is water cooling)

PCB size

50(W)-400mm(W)

A high degree of PCB transfer

900±20mm

Transmission

Chain rail&mesh belt

Transmission direction

L→R

Transmission speed

0-2000mm/min adjustable

Wide range of track notes

50-420mm

Net width

500mm

Power failure protection

UPS

Power supply

A3ø380V 50HZ

Normal working power/total power consumption

14/88KW

Dimensions(l*w*h)

6180mm(L)*1500mm(W)*1550mm(H)

Weight

2350KG

Applications

Monitoring the actual process data is the actual process control, which in the reflow process control means monitoring the thermal curve of each plate manufactured. The basic function of the automatic reflow management system is to accurately automatically detect and collect product data through the furnace. Automatic collection of reflow process data; Provide real-time feedback and alarm for zero-defect production; Provides automatic SPC charts and correction process capability indices for the reflow process
Our Reflow oven is widely used in EMS, LED, DVD, household appliances and various electronic products and so on.
