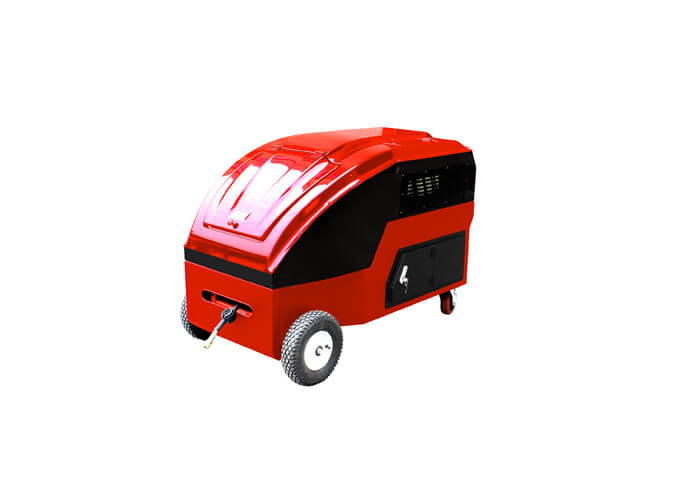

Mobile High-pressure Fine Water Mist Fire Extinguishing Device (Electric)
Mobile high-pressure water mist fire fighting system ppt, QXWL18.5/22BD-T125, consists of frame, high-energy lithium battery pack, wheels, push handle, water foam box, water mist fire pump, water filling mechanism. The device uses an electric motor as the equipment power, green, equipped with touch screen, can realize one-button start/stop, real-time pressure display, water level/foam liquid level display, foam proportion adjustment on the panel. Can effectively and timely extinguish large class A, CLASS B, class C and electrical fire, suitable for small space, large and medium-sized fire vehicles inconvenient to start the initial fire, such as highway vehicle fire extinguish; On duty at large events and patrolling at trade centers; Tourist attractions, cultural relic units, ancient buildings; All kinds of important storerooms, oil storage, confidential room, etc.
Parameters of Mobile High-pressure Fine Fire Fighting Water Mist System (Electric)
|
The Product Type |
Water mist gun |
Product model |
QXWL18.5/22BD-T125 |
|
Prime Mover Type |
motor |
Prime mover power |
6kW |
|
Outside The Profile Size |
1370mm×790mm×1120mm (Length x width x height) |
||
|
The Battery Type |
High energy lithium battery |
|
|
|
Liquid Storage Tank Volume |
125 L (water110L, foam 15L) |
The length of the hose |
52.7 m |
|
Pump Rated Outlet Pressure |
20 MPa |
Pump rated flow |
22 L/min |
|
Water Spray Rated Working Pressure |
18.5 MPa |
Water spray rated working pressure |
18.5 MPa |
|
Rated Spray Flow Rate of Water Mist |
22 L/min |
Water spray-rated flow rate |
22 L/min |
|
Fine Water Mist Range |
12 m |
Water spray range |
18 m |
|
Effective Spray Time of Fine Water Mist |
6 min |
Effective spray time of water mist |
6 min |
|
The Droplet Diameter |
<100μm |
Fire extinguishing performance |
20A, 297B |
Features of Mobile High-pressure Fine Water Mist Fire Extinguishing Device (Electric)
01
No Pollution To The Environment
High fire extinguishing efficiency, less water damage, destructive, safety and environmental protection etc., Applicable to large factories, businesses, communities, stations, tunnels, warehouse, computer room, square, building fire extinguishing and so on.
02
Fine water mist is harmless to human body.
Has no impact on the environment and will not produce harmful decomposition substances at high temperatures. Because of its efficient cooling effect and obvious absorption of smoke and dust, it is more conducive to the escape and rescue of fire scene personnel. Fine water mist has good , can solve the problem of shielding, the steam formed by fine water mist can cover the combustion, effectively prevent the spread of the fire and reignite.
03
Compared with other conventional water spray fire extinguishing equipment.
The water consumption of water mist fire extinguishing method is greatly reduced, which reduces the energy consumption of the system and the volume of the fire water tank. Good electrical insulation performance.
If you want to know what is the difference between intrinsically safe and explosion proof, please visit our website.
Now the price of explosion proof products is affordable, if you have needs, please contact us.
